Prevent Battery Fires: Campervan Lithium Setup That Meets NEC 706
For most DIY campervans, the safest and most efficient route is a LiFePO4 bank paired with a capable Battery Management System, correctly rated battery-side overcurrent protection, and conductors sized with NEC 706 in mind. This is a DIY installation guide, but once your bank exceeds 1 kWh (which nearly every modern setup does), you’re working with what code treats as an energy storage system, and that single fact should guide every wiring decision you make.
TL;DR:
- Once your battery bank exceeds 1 kWh, wiring must comply with NEC 706, including a disconnect within sight of the bank and appropriately rated overcurrent protection.
- Proper conductor sizing (4/0 AWG for battery-inverter runs and 4 to 6 AWG for MPPT connections) is crucial to handle peak currents and prevent fire risks.
- Temperature management during charging is vital, as low temperatures can cause lithium plating and capacity loss, requiring integrated heaters or charge-inhibit wiring.
- Accurate load calculations, including surge currents from inrushes, are necessary to size batteries and components properly for a minimum of three days of autonomy with safety margins.
- Mounting the battery in a ventilated, vibration-resistant enclosure with labeled components and a wiring diagram simplifies future maintenance and ensures safety compliance.
Table of Contents
- Core components of a campervan lithium battery setup
- How to size your battery bank and estimate peak loads
- Wiring, conductor sizing, and NEC rules for van battery banks
- Installation best practices for mounting and documentation
- Cold weather charging limits and ongoing maintenance
- Pre-launch checks and common first-week troubleshooting
- What years of installs taught me about getting this right
- Where to find LiFePO4 batteries and parts for your build
- FAQ
- Sources
Core components of a campervan lithium battery setup
A working system depends on a handful of parts that all have to cooperate. Skip one, or undersize it, and the whole bank underperforms or becomes a fire risk.
LiFePO4 cells outlast lead-acid and AGM chemistries by a wide margin and allow deeper usable discharge without the same wear penalty, which is part of why they’ve become the default choice for off-grid builds, as covered in our benefits of LiFePO4 batteries overview. The Battery Management System sits between the cells and the rest of your electrical system, and it needs to handle more than basic cutoff duty.
A van-ready BMS should manage:
- Overvoltage and undervoltage protection for each cell group
- Overcurrent and short-circuit disconnection
- Cell balancing during charge cycles
- Temperature monitoring with a charge-inhibit signal
- Communication output (Bluetooth or CAN) for state-of-charge visibility
Beyond the battery and BMS, you’ll need an inverter sized to your largest simultaneous AC load, an MPPT charge controller matched to your solar array’s voltage and current, and a DC-DC charger if you plan to top off from the alternator while driving. Fuses belong at every major junction, not just at the battery.
A basic parts checklist before you start wiring: LiFePO4 battery or battery bank, BMS (often built in, but verify its specs), pure sine inverter, MPPT controller, DC-DC charger, battery monitor or shunt, Class T fuse and holder, bus bars, appropriately rated cable, and a disconnect switch.
How to size your battery bank and estimate peak loads
Sizing a battery bank is arithmetic, not guesswork, once you know your loads and how many days you want to run without sun.
- List every appliance’s wattage and estimated daily hours of use, then multiply to get daily watt-hours per device.
- Add all device watt-hours together for a total daily Wh figure.
- Divide by your system voltage (12V or 24V) to get daily amp-hours.
- Divide that figure by your target depth of discharge, typically 80 to 90% for LiFePO4, to find the usable capacity you actually need.
- Multiply by your desired days of autonomy to size the full bank.
- Add a 20 to 25% safety margin for inverter inefficiency and unexpected draw.
Say your van runs a 45W fridge for 24 hours (1,080 Wh), a 60W water pump for 30 minutes (30 Wh), and a laptop charging at 65W for 3 hours (195 Wh), totaling roughly 1,305 Wh per day. At 12V, that’s about 109 Ah daily.
Peak current matters as much as daily totals. A 2,000W inverter can draw a brief surge well above its continuous rating during motor startup, and that inrush current, not the average daily draw, determines your conductor gauge and fuse rating between battery and inverter. Our capacity planning guide walks through additional load scenarios if your appliance list looks different from this example.
Wiring, conductor sizing, and NEC rules for van battery banks
Once your bank crosses 1 kWh, which a single 12V 100Ah LiFePO4 battery already does at roughly 1.28 kWh, you fall under NEC 706 for Energy Storage Systems. That section requires a disconnecting means within sight of the battery bank, adequate working space around it, and overcurrent protection sized to the available short-circuit current rather than just the expected load current.
A 12V, 200Ah LiFePO4 bank stores enough energy to qualify as an ESS under NEC 706, which means most campervan battery banks fall under this code (https://marinepowerlab.com/rv-solar-wiring-nec-compliance-guide/), triggering the code’s disconnect and working-space requirements even in a small van build.
Practical conductor choices follow from there. Short, high-current battery-to-inverter runs commonly use 4/0 AWG cable, while MPPT-to-battery runs typically fall in the 4 to 6 AWG range depending on run length and current. If NEC 690 applies to your PV source circuit, size and label it the same way you would a residential solar circuit, with correct conductor ampacity and overcurrent protection at the array end.
The protective devices that matter most:
- Battery-side fuse: Class T or NH-style, rated for high interrupting capacity
- DC load fuse: sized to each branch circuit’s conductor, not the battery’s full output
- PV combiner fuse: matched to the array’s short-circuit current with margin
- AC charger breaker: sized per the charger’s input rating
A LiFePO4 bank’s available short-circuit current can reach thousands of amps, and many common ANL-style fuses lack the AIC (amperage interrupting capacity) to clear that fault safely. Placing a properly rated Class T fuse directly at the battery terminal, rather than relying on cable alone to fail safely, is the detail that separates a code-aware build from a risky one. Our wiring guide for RV battery banks includes diagram templates if you want a visual reference.

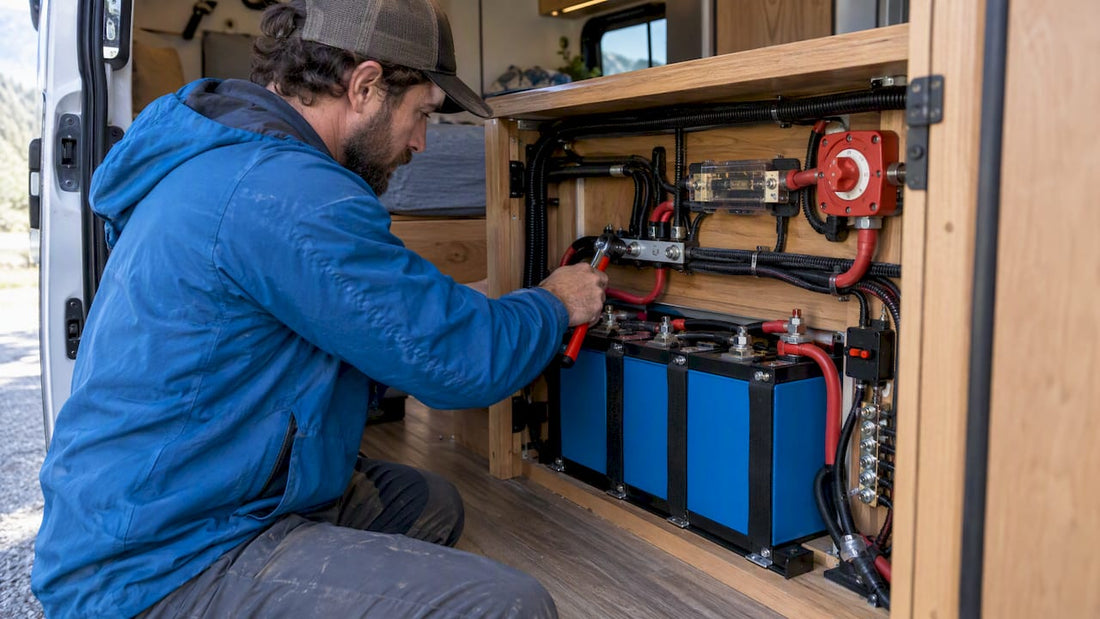

Installation best practices for mounting and documentation
Where and how you mount the bank affects both safety and how easily anyone, including an inspector or a future buyer, can understand your system.
Choose a ventilated, vibration-resistant enclosure rather than tucking the bank into an inaccessible void. Keep working clearance around the disconnect and fuse so you can service them without pulling apart cabinetry. Separate the battery compartment from heat sources like exhaust runs or the engine bay, protect positive cable runs with conduit or loom where they pass through metal panels, and anti-seize or dielectric grease on terminals reduces corrosion over years of vibration and moisture exposure.
Torque terminals to the battery manufacturer’s spec rather than guessing; over-tightening cracks terminal posts just as reliably as a loose connection causes arcing.
Pro Tip: Keep a printed single-line diagram and parts list taped inside the battery compartment door, it saves hours during troubleshooting and speeds up insurance or resale inspections.
A few documentation habits worth building in from day one:
- Label every fuse, breaker, and disconnect with its rating and circuit
- Keep a dated single-line diagram showing all major components
- Photograph the completed install before closing up panels
- Store your parts list and receipts with the van’s maintenance records
Cold weather charging limits and ongoing maintenance
Temperature is the variable most DIY installers underestimate, and it’s also the one with the clearest research behind it.
Charging lithium cells at low temperatures risks lithium plating on the anode, a degradation mechanism confirmed in cell-level fast-charging research, which is why most manufacturers specify a minimum charging temperature and why a BMS should cut charge current below it rather than relying on the user to remember. Simulation work comparing charge methods at temperature extremes found real trade-offs between capacity retention and cycle life, meaning the charge strategy you choose for cold or hot climates should match your priorities, as detailed in research on LiFePO4 temperature behavior.
Practical defenses include an internal battery heater, an insulated compartment, or charge-inhibit wiring tied to the BMS temperature sensor, covered further in our cold weather battery guide.
A simple maintenance routine: check terminal torque and cable condition every few months, review BMS logs for cell imbalance, confirm capacity hasn’t drifted from spec during a full cycle, and store the bank at 50 to 60% state of charge if the van sits unused, following the voltage guidance in our LiFePO4 storage voltage guide.
Pre-launch checks and common first-week troubleshooting
Before you ever flip the main disconnect, run through a short verification pass.
- Confirm polarity at every connection point and that the main fuse is installed with the correct rating.
- Verify the disconnect switch is accessible and within sight of the battery bank.
- Check that BMS wiring, including the temperature sensor, is seated and that balance leads match the correct cell groups.
- Power up in sequence: battery disconnect first, then DC loads, then inverter, watching your battery monitor for any voltage anomaly during the first charge cycle.
Common early faults include a tripped battery fuse from inrush current underestimation, a BMS lockout triggered by cell imbalance at first charge, no solar input from a misconfigured MPPT profile, and a high-voltage alarm caused by a charger still set to a lead-acid absorption voltage.
What years of installs taught me about getting this right
The mistakes I see most often aren’t exotic: undersized fuses, missing temperature sensors, and conductors chosen by habit instead of calculation. This guide exists to close those gaps before they become a service call or worse. We back our lithium marine and powersport units with a warranty, reflecting extensive experience building batteries for demanding environments. If your build involves shore power tie-ins, inspection requirements, or anything beyond a single DC-isolated bank, loop in a licensed electrician or your local AHJ before closing up the walls.
— Donald
Where to find LiFePO4 batteries and parts for your build
Once your calculations and diagram are ready, sourcing the right components shouldn’t slow you down. We carry Lithium (LiFePO4) Marine Batteries and Lithium Banshee Powersport Batteries built with integrated BMS protection and backed by a 5-year warranty, plus LiFePO4 accessories covering terminal kits, monitors, and heaters.
Browse our full lineup at Banshee Batteries to match a battery and accessories to the system you just sized.
FAQ
How much does it cost to convert an RV to lithium batteries?
Costs vary widely based on bank size, inverter capacity, and whether you hire an installer, and we don’t publish a universal figure since every build differs. Budgeting for the battery, BMS, inverter, charger, fusing, and cable typically represents the bulk of the expense, with labor adding more for professional installation.
Do batteries in parallel drain equally?
Batteries in parallel only drain evenly when their internal resistance, age, and state of charge are closely matched, and even small differences can cause uneven current sharing over time. Using identical battery models with a shared BMS or a battery combiner designed for parallel banks helps keep the drain balanced.
How do I install a lithium battery in a caravan?
Installation follows the same core steps as a campervan: size the bank to your loads, choose a BMS-equipped LiFePO4 battery, run correctly sized cable with battery-side Class T fuse protection, and wire in a disconnect within sight of the bank per NEC 706 guidance. Mount the battery in a ventilated, accessible enclosure and verify charge sources use a LiFePO4-specific voltage profile before first use.
What is the biggest disadvantage of a lithium-ion battery?
The most commonly cited drawback is sensitivity to charging temperature: charging below the manufacturer’s minimum threshold risks lithium plating and permanent capacity loss, as shown in cell-level research on fast charging. Upfront cost is also higher than lead-acid, though longer cycle life often offsets that over the battery’s lifespan.
