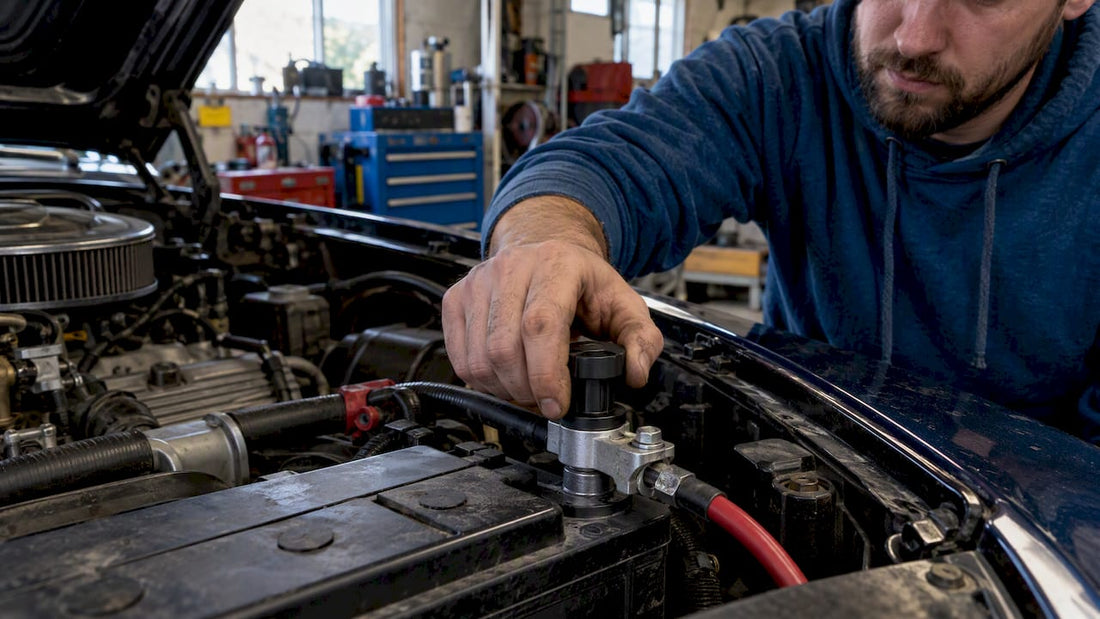

Quick disconnect fitted to a car battery terminal

Battery Quick Disconnects: Size for Loads, Not Cranking Peaks

A battery quick disconnect is a manual switch or terminal that physically breaks the electrical circuit between your battery and the rest of your vehicle, stopping parasitic drain and adding a theft deterrent. For a classic car or show vehicle, a top-post knob terminal usually does the job. Boats and RVs need a rotary panel switch rated for marine duty, and powersports builds often do best with a compact knife-blade or remote kit. Whatever you pick, the switch’s continuous amp rating has to clear your worst-case continuous load, not just your average one.

TL;DR:

  • Size the switch for at least 1.25 times your maximum continuous draw; its cranking rating covers starter bursts, not sustained loads.
  • Marine engine compartments need ignition protected, IP rated rotary switches; top post knobs and knife blades are not rated for continuous marine use.
  • Side post batteries may need an adapter; wire the fuse before the disconnect, and install both because neither component replaces the other.
  • Mount the disconnect on the positive cable near the battery, never switch it off with the engine running, and remove the negative terminal first during installation.
  • A lithium battery’s BMS protects cells from overcharge and deep discharge, but it cannot prevent wiring shorts or replace a physical disconnect.
bansheebatteries.com
Power Your Setup With the Right Battery
Banshee Batteries designs AGM and lithium batteries for powersports, auto, and marine use, with expert guidance to help match your needs.
Explore battery options

Table of Contents

Comparing the Top Battery Disconnect Options

Before you buy, it helps to see how the common product families stack up on the specs that actually matter: continuous rating, how they’re actuated, and what they’re built for.

A few patterns stand out once you line these up side by side:

  • Littelfuse manual disconnect switches span the widest rating range of any family here, which makes them a reasonable starting point whether you’re wiring a sedan or a commercial marine engine room.
  • Marine-grade rotary switches from Blue Sea Systems-style and Perko-style designs carry the highest sustained capacity and are the only entries in this list built with an alternator field-disconnect option.
  • Top-post knob and knife-blade terminals are the cheapest and easiest to retrofit on an existing top-post battery, but neither is rated for continuous marine service.
  • Remote kits trade raw amperage for convenience, so they fit best on vehicles where the main load is already modest.

Fitment matters as much as rating. Side-post batteries generally need an adapter or a different terminal style than top-post units, and some knife-blade and knob terminals require shims to seat properly on thinner posts. Check your battery’s post style against the terminal’s listed fitment before ordering.

How to Choose the Right Disconnect for Your Setup

Pick the switch by working through sizing, actuator style, and environment in that order.

  1. Add up your worst-case continuous draw. Count every accessory that can run at once, not your average load.
  2. Size the switch at or above 1.25 times that draw. This margin matches the practice outlined in installation guidance from Brightmints, which also notes a disconnect never replaces a properly sized main fuse.
  3. Separate continuous rating from cranking rating. A switch’s continuous number covers sustained draw, while its intermittent or cranking rating covers short bursts like a starter motor and is usually several times higher.
  4. Pick an actuator that matches how you’ll use it. A removable knob adds theft deterrence but means walking to the battery every time, while a remote or key switch sits in the cabin at the cost of lower continuous capacity.
  5. Match environmental protection to where it mounts. Marine engine compartments call for ignition-protected, IP-rated housings; a garage-kept car does not.
  6. List the companion parts before you check out. You’ll also need a correctly sized main fuse, properly gauged cable, matching lugs, a crimping tool, and a torque wrench.

Pro Tip: Buy your main fuse and disconnect switch together and size both to the same worst-case load, since a mismatched pair leaves either the fuse or the switch as the weak link.

Installing a Disconnect: Placement, Wiring Order, and Torque

Mount the switch on the positive, or ungrounded, conductor as close to the battery as the installation allows. That placement follows guidance Perko publishes for using battery switches, which also covers torque values for common stud sizes.

  • Wire in this order: battery, main fuse, disconnect switch, then the distribution block or fuse panel.
  • Both the fuse and the switch are required; one does not substitute for the other.
  • Torque matters more than most installers expect: Perko lists 21 ft-lbs for 1/2-inch studs and 10 ft-lbs for 5/16-inch studs on its switch installation reference, and high-load marine setups often need 4/0 cable for switches rated around 480A continuous.
  • Never switch the battery off while the engine is running. Doing so can send a damaging voltage surge through the alternator, and some marine switches include an alternator field-disconnect feature specifically to guard against that mistake.
  • For work inside an engine compartment, especially around fuel vapor, bring in a qualified marine electrician rather than improvising.

A quick voltage-drop check at the switch after install catches a loose terminal before it becomes a heat problem. The partner guide on voltage drop testing walks through how shops run that check on wiring and connectors in minutes.

Keeping a Disconnect and Battery Working Together

A battery management system inside a lithium battery protects the cells from overcharge and deep discharge, but it is not a substitute for a physical disconnect. A BMS can’t stop a dead short on a corroded cable, and it does nothing to deter theft.

  • Re-torque the terminal connections after the first few hundred miles or hours of vibration, then check periodically after that.
  • Inspect the switch housing for warmth under heavy load, which signals resistance building at a loose contact.
  • Apply dielectric grease to the contact points to slow corrosion.
  • Cycle the switch occasionally and look for arcing or pitting on the contacts.

For storage-season prep, our guide on preventing battery drain and our boat battery switch wiring guide cover the battery side of this pairing in more depth.

Does a Disconnect Work the Same Way With AGM and Lithium Batteries?

A mechanical disconnect isolates the circuit the same way regardless of chemistry, but the battery behind it changes what you should watch for. AGM batteries tolerate a disconnect switch without any special wiring considerations, since they behave electrically much like a standard flooded battery under switching loads.

Lithium (LiFePO4) batteries add a BMS that can shut down output under certain fault conditions, which is a separate protection layer from the physical switch. Pairing a correctly sized disconnect with a lithium battery still matters for storage and theft prevention, since the BMS protects the cells, not the circuit against tampering or wiring faults. Our breakdown of AGM versus LiFePO4 for powersports covers how the two chemistries differ under load if you’re deciding which to run.

One practical note: confirm the terminal style matches your battery’s post before ordering. A LiFePO4 marine or RV battery with a side-post or stud terminal may need a different adapter than a top-post knob terminal designed for automotive posts.

When You Actually Need a Quick Disconnect

The three most common reasons owners install one are seasonal storage, theft deterrence, and maintenance access. A vehicle parked for weeks or months keeps drawing current from clocks, alarms, and computer modules even when it’s off, and a disconnect stops that drain cold.

For theft deterrence, a removable knob terminal or a hidden in-cabin remote switch breaks the circuit a thief needs to hot-wire or bypass a system, which is why they’re popular on classic and show cars. For maintenance, flipping a disconnect before working on wiring, swapping a component, or jump-starting a neighboring vehicle removes the risk of a spark or short while your hands are near the terminals.

Powersports owners storing an ATV or motorcycle over winter get the same benefit as car owners. Our article on why ATV batteries drain overnight walks through the parasitic drain issue a disconnect solves directly.

Staying Safe During Installation and Everyday Use

The biggest risk during installation is a dropped wrench or loose terminal bridging the positive and a grounded surface, which can cause a dead short in an instant. Keep a wrench with electrical tape around the jaws when working near the terminals, and remove any metal jewelry before you start.

Insulate every exposed connection, especially on the positive side, since a bare positive terminal touching the chassis or an engine block is the most common cause of a short during a DIY install. Confirm polarity before connecting anything: reversing positive and negative, even briefly, can damage electronics or cause a spark at the terminal.

Always disconnect the negative terminal first and reconnect it last, which keeps a stray tool from completing a circuit while the positive side is still live. For marine or engine-compartment installs, stick with ignition-protected hardware, since a standard automotive switch isn’t built to resist sparking near fuel vapor.

Safe battery disconnect and reconnect sequence

Troubleshooting a Disconnect That’s Acting Up

A disconnect that feels loose, runs warm, or shows corrosion at the contacts usually points to one of a few common issues. Heat under load almost always traces back to a loose connection or an undersized cable for the switch’s rating, so recheck torque and cable gauge first.

Corrosion or a greenish residue at the terminal calls for a wire brush cleaning and a fresh coat of dielectric grease. If the switch won’t fully cut power, a stuck or pitted contact is the likely cause, and cycling the switch a few times while inspecting for arcing often reveals the problem.

A disconnect that trips or interrupts power unexpectedly while the vehicle runs may be undersized for the load; revisit the 1.25 times continuous-draw sizing rule from the Brightmints installation guide before assuming the switch itself has failed.

Troubleshooting a Disconnect That's Acting Up — overview diagram

Why I Trust a Properly Sized Disconnect

A disconnect only earns its keep when it’s sized for the load it’s protecting, which is a lesson I’ve seen play out across two decades of building battery systems for powersports and marine use. Pair the right switch with a reliable battery and you’ve solved drain, theft, and maintenance risk in one move.

— Donald

Pair Your Disconnect With a Battery Built to Match It

We don’t sell disconnect switches, but the battery behind that switch determines how well the whole system holds up. A disconnect only protects what’s already reliable, so we build our AGM and lithium batteries for the sustained loads and rough conditions that powersports and marine use throw at them.

Bansheebatteries

Every battery we ship comes backed by warranty coverage, so the power source behind your disconnect is covered for the long haul.

FAQ

How does a battery quick disconnect work?

A battery quick disconnect physically breaks the connection between the battery post and the rest of the electrical system using a rotary knob, lever, or remote-actuated switch. Once open, it stops current flow entirely, which halts parasitic drain and prevents accidental shorts during maintenance.

What is the best quick disconnect battery terminal?

The right terminal depends on your vehicle and use case rather than one universal winner. A top-post knob or knife-blade terminal, both commonly rated for moderate continuous current typical of automotive accessories, suits classic cars and seasonal storage, while marine and RV owners typically need a higher-capacity rotary panel switch rated for continuous marine duty.

What is the difference between a quick connect and a quick disconnect?

In practice, these terms describe the same category of hardware: a terminal or switch that lets you separate the battery from the circuit without cutting or unbolting cables. Some sellers use “quick connect” to emphasize the reconnection side and “quick disconnect” to emphasize isolation, but the function is identical.

What is a good quick disconnect for a side post battery?

Side-post batteries typically need an adapter or a switch specifically designed for stud-style posts, since standard top-post knob and knife-blade terminals won’t seat correctly. Check the fitment notes on any manual disconnect switch you’re considering, since many manufacturers offer side-post-compatible versions of the same model.
