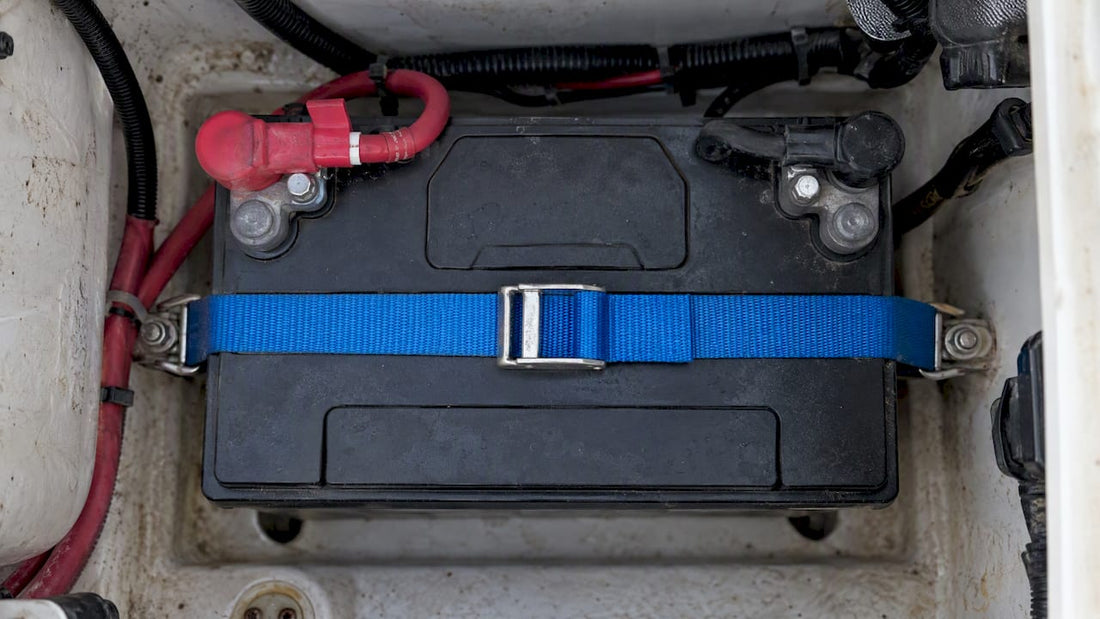

Marine battery secured with a blue restraint

One Inch Max: Marine Battery Tie Downs Must Meet Safety Rules

The most reliable fix for most boats is a rigid tray with stainless steel hardware, or a heavy-duty strap kit when space is tight, paired with proper terminal protection and solid mounting. Either choice needs to meet two checkpoints: the battery cannot shift more than one inch in any direction under load, and the terminals stay shielded from accidental contact. The sections below compare your options and walk through a compliant installation.

TL;DR:

  • A rigid tray with stainless crossbars suits heavier batteries or frequent access; use a strap only when an open, shallow space cannot fit a tray.
  • Federal rules limit battery movement to one inch in any direction under specified pulling force; test the case after installation, not appearance.
  • Choose a battery box when terminal exposure or hydrogen control dominates; its vent must sit at the highest point if the cover is sealed.
  • Use 316 stainless fasteners or marine grade coated hardware, UV resistant strap webbing, and structural backing; thin fiberglass alone can let fasteners pull free.
  • Fit terminal boots or a box lid, and shield metallic fuel components within 12 inches above the battery’s top surface.
bansheebatteries.com
Secure Your Battery for the Water
Banshee Batteries makes AGM and lithium batteries for marine use, with expert guidance to help you choose a solution for your vessel.
Explore marine batteries

Table of Contents

Comparing Strap Kits, Trays, Boxes, and Hold-Down Brackets

Every battery mounting solution falls into one of four categories, and the right pick depends on your compartment shape, access needs, and how rough your water tends to be.

Strap kits are the simplest option: a length of webbing, a buckle or ratchet, and padeyes that bolt to the deck or shelf on either side of the battery. They work well when the battery sits in a shallow, open tray or on a flat shelf with enough room on both sides for anchor points. A strap alone does nothing for terminal protection, so pair it with dielectric boots or a cover.

Rigid trays bolt to the mounting surface and often include adjustable crossbars that clamp down across the top of the case. Many installers prefer tray systems over straps because they give better stability and easier top access in tight or poorly ventilated compartments, and the crossbars remove vertical play that a strap can leave behind.

Battery boxes enclose the case entirely, which makes them the strongest choice for terminal protection and for controlling where hydrogen gas vents. A box with a sealed cover needs a vent at its highest point so gas can escape rather than pool inside.

Hold-down brackets are compact, low-profile fittings suited to small batteries in cramped lockers where a full tray would not fit.

  • Strap kits suit shallow, open compartments with room for side padeyes.
  • Trays suit boats needing frequent top access or heavier batteries.
  • Boxes suit installs where terminal exposure or gas control is the main concern.
  • Brackets suit small batteries in compact spaces.
Product class Best for Material / corrosion resistance Mounting style Ease of installation Typical price / kit components
Strap kit Open shelves, shallow trays Nylon webbing, stainless buckle Padeyes bolted to deck or shelf Easy, minimal tools Low, strap + buckle + padeyes
Rigid tray Frequent access, heavier batteries Polymer tray, stainless crossbar hardware Base bolted, crossbars clamp top Moderate, needs backing Mid, tray + crossbar + fasteners
Battery box Terminal protection, gas control Polymer or coated steel Base bolted, lid latches or straps Moderate Mid to high, box + vent fitting
Hold-down bracket Small batteries, tight lockers Stainless steel Low-profile bracket over case Easy Low, bracket + fasteners

How to Choose the Right Tie-Down Kit or Tray

Start by measuring your battery’s footprint, length, width, and height, then add a few inches of slack when sizing a strap so it clears the terminals and any raised vent caps. Measure twice before ordering, since mounting hardware and padeyes eat into the usable strap length once installed.

Material choice matters as much as fit. Look for 316 stainless fasteners or marine-grade coated hardware, along with UV-resistant webbing on any strap kit, since lower-grade metals corrode fast in a salt-laden bilge and degraded webbing fails without warning.

Load rating ties directly to compliance. Federal rules require that an installed battery move no more than one inch in any direction when a specified pulling force is applied, so check the vendor’s stated hold strength and verify the fit yourself after mounting rather than trusting the spec sheet alone.

Before buying, insist on a kit that lists:

  • Padeyes or anchor points rated for marine use.
  • A backing plate or a clear recommendation for fastening into structural members.
  • Marine-grade fasteners, not generic hardware-store bolts.
  • A hardware list you can check against what arrives in the box.

Price bands run low for a basic strap and padeye set, mid for a tray with adjustable crossbars, and high for a sealed box with vent fittings and heavier stainless hardware. Spend toward the higher end for offshore use or any installation exposed to sustained vibration, where cheaper webbing and thin brackets wear out faster.

Pro Tip: Buy from a listing that spells out every included fastener and gives backing plate guidance. If a kit’s description cannot tell you what holds it down, you cannot verify it meets the movement limit.

Installing and Mounting Your Battery Tie-Down the Right Way

A compliant install follows a predictable sequence, and skipping steps is where most DIY mounts fail the eventual movement check.

  1. Disconnect the battery and wear gloves and eye protection before handling cables or hardware.
  2. Mask both terminals with dielectric boots and plan a route for hydrogen venting before you start bolting anything down.
  3. Locate structural backing under the mounting surface, or bond a marine plywood or composite backing plate, since installer guidance warns that fastening into thin fiberglass skin without backing leads to pulled fasteners over time.
  4. Through-bolt into stringers or bulkheads where possible, and seal every hole with marine-grade sealant to stop water intrusion.
  5. Fit terminal boots or a box lid, and shield any metallic fuel system component within 12 inches and above the battery top surface, a requirement set out in 33 CFR §183.420.
  6. Tighten the strap or crossbar, then test by hand that the case does not shift.

A battery must not move more than one inch in any direction under the pulling force specified in federal rules, which is the practical benchmark to check against once your hardware is torqued down.

After a short sea trial, inspect the fasteners and strap tension again. Make a habit of checking the mount every season, and replace webbing showing UV fading, fraying, or abrasion before it becomes the weak point in an otherwise solid install.

Matching Secure Mounting to the Right Battery

A tie-down is only half the job. Getting the battery itself right matters just as much, and that is where two decades of building AGM and lithium batteries for marine and powersports use has shaped how we think about mounting. AGM marine batteries carry a multi-year warranty, and lithium (LiFePO4) marine batteries carry a longer warranty, both built around the idea that a battery should outlast several seasons of hard use.

For readers replacing a battery alongside a mount upgrade, our marine battery installation checklist walks through the same backing plate and terminal protection steps covered above. If you are moving to lithium, our lithium safety guidance covers venting and terminal considerations specific to that chemistry.

Matching Secure Mounting to the Right Battery — overview diagram

An Installer’s Take on What Actually Holds Up

A tray with stainless hardware beats a strap in most compartments simply because it removes guesswork: the crossbars set the vertical hold, and you can see at a glance whether anything has shifted. Straps still earn their place in shallow, open shelves where a tray would not fit.

Whichever you choose, protect the terminals and back every fastener into something structural. Skipping the backing plate is the single most common reason a solid-looking mount fails months later.

— Donald

Pair Your Mount With a Battery Built to Match It

A secure tie-down works best when it is holding a battery built for the same conditions. AGM, EFB, and lithium (LiFePO4) marine batteries come with pre-charged, installation-ready construction, so the battery going into your new tray or strap kit can be ready to mount upon arrival.

Bansheebatteries

Visit our storefront to match a battery to your boat and get the mounting hardware sorted in one order.

FAQ

What is the best way to secure a marine battery?

A rigid tray with stainless crossbar hardware or a heavy-duty strap kit with marine-grade padeyes are the two most reliable approaches. Either one needs to hold the battery still under load and keep the terminals shielded from accidental contact.

How much movement is allowed for a boat battery mount?

Federal rules set the limit at no more than one inch in any direction when a specified pulling force is applied during testing. Check this by hand after installation rather than assuming a tight-looking strap meets the standard.

Do I need a battery box or will a tray and strap work?

A box gives the strongest terminal protection and the most control over hydrogen venting, which makes it the better choice where exposure or gas buildup is a concern. A tray or strap with separate terminal boots can meet the same protection goal in a more open compartment.

What hardware should I use for a marine battery tie-down?

Stick with 316 stainless steel fasteners or marine-grade coated hardware, along with UV-resistant webbing on any strap. Lower-grade metal corrodes quickly in a marine environment and undermines the mount’s holding strength over time.

Does the battery type change how I should mount it?

AGM, EFB, flooded, and lithium batteries all need to meet the same movement and terminal protection requirements, but case dimensions and weight differ enough to affect strap length and backing plate sizing. Measure your specific battery and check the manufacturer’s mounting guidance before buying a kit.

Sources

Primary Regulations and Standards to Consult

These are the core references behind the compliance points covered above.
