What Is a Battery Monitoring System for an RV?
A battery monitoring system for an RV is a shunt-based device that counts every amp flowing into and out of your house bank, to estimate state of charge and time remaining. Instead of guessing from a fuzzy voltage reading, you get an actual percentage, updated constantly, that tells you how much usable power is left. The Victron BMV-712 Smart is the most widely referenced example of this kind of monitor, and its companion app, VictronConnect, is what most owners picture when they think of “checking the battery” from their phone.
The one-line benefit is simple: it prevents the moment your fridge shuts off at 2 a.m. because the battery hit zero without warning. Banshee Batteries builds this into how it thinks about power systems for RVs, marine vessels, and powersports rigs alike, because a battery you can’t see is a battery you can’t protect.
- Tracks state of charge (SoC), not just voltage
- Warns before total discharge, not after
- Feeds data (cycle count, deepest discharge) that shapes smarter charging habits
Key Takeaways
A battery monitoring system works because it replaces voltage guesswork with amp-hour counting, giving RV owners an accurate, real-time picture of usable power.
| Point | Details |
|---|---|
| Core function | A shunt counts amps in and out to calculate state of charge, unlike unreliable voltage-only gauges. |
| Installation accuracy | Every load and charger must route through the shunt, or readings will drift and mislead you. |
| Chemistry matters | LiFePO4’s flat voltage curve makes coulomb counting essential, not optional, for lithium banks. |
| Recalibration routine | Sync to 100% after a full charge every few weeks to months to prevent long-term drift. |
| Banshee’s role | Banshee Batteries offers LiFePO4 batteries and compatible monitors sized for RV inverter and solar loads. |
Table of Contents
- How Shunt-Based Battery Monitors Calculate State of Charge
- What a Battery Monitor Display Actually Shows You
- Shunt, Display, Wiring, and App: What Goes Into an Installation
- Choosing the Right Battery Monitor for Your RV
- Keeping Your Monitor Calibrated and Avoiding False Readings
- How Monitoring Data Actually Changes Your Habits
- Finding the Right Monitor and Battery Setup With Banshee Batteries
- Sources

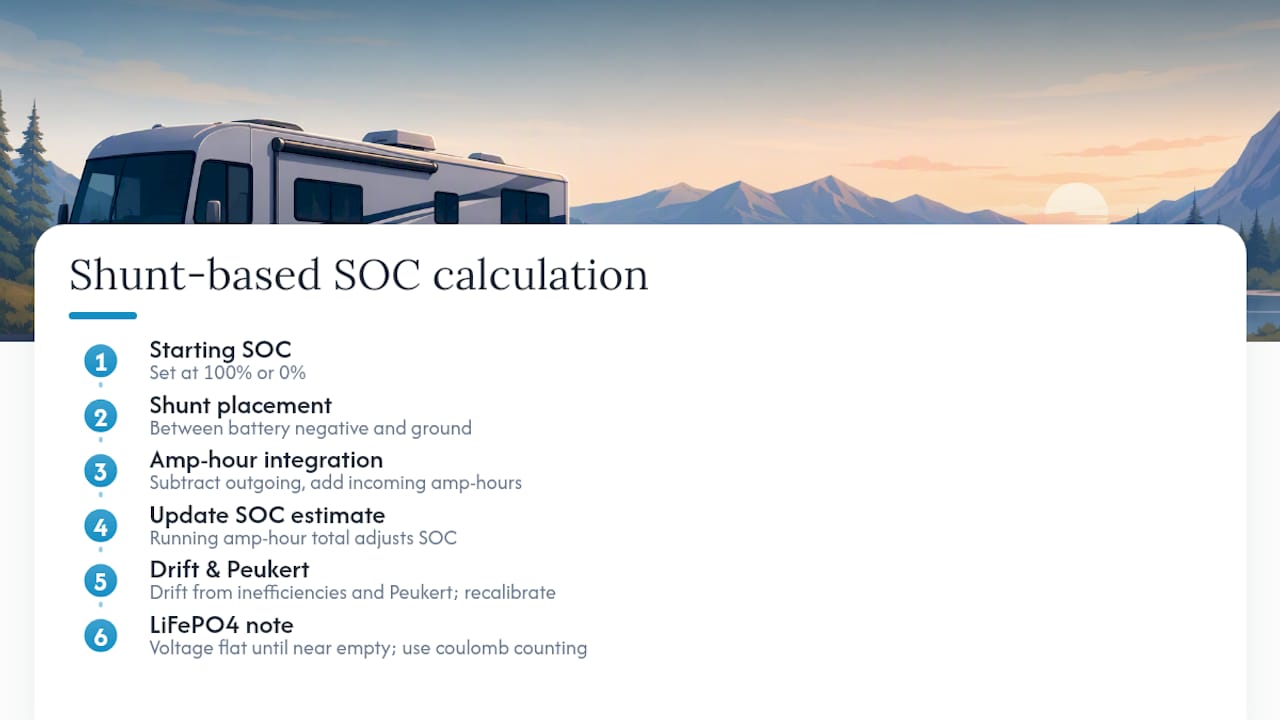

How Shunt-Based Battery Monitors Calculate State of Charge
A monitor doesn’t magically know how full your battery is. It counts amps. Every time current leaves the battery to run your lights, fridge, or inverter, the monitor subtracts that amp draw from a running total. Every time solar or shore power pushes current back in, it adds it back. This is called amp-hour integration, and it starts from a known point, either a full charge set at 100% or an empty state set at 0%, then tracks every amp-hour that moves from there.
The shunt itself is a small precision resistor installed on the negative side of the battery bank, between the battery negative terminal and the rest of your RV’s ground system. Every amp used by any device has to pass through it, which is why proper shunt placement is the single most important step in getting accurate readings.
The system isn’t perfect. Drift creeps in over months from charging inefficiencies and a phenomenon called Peukert’s effect, where a battery delivers less usable capacity under heavy loads than it does under light ones. That’s why periodic recalibration matters, and why voltage-only readouts fall apart entirely on lithium systems: LiFePO4 batteries hold a nearly flat voltage curve until they’re almost empty, so coulomb counting is the only method that actually works for them.
Pro Tip: If you recently upgraded to LiFePO4 and you’re still eyeballing a voltage gauge, you’re flying half-blind. Voltage tells you almost nothing about remaining capacity until the battery is nearly dead.

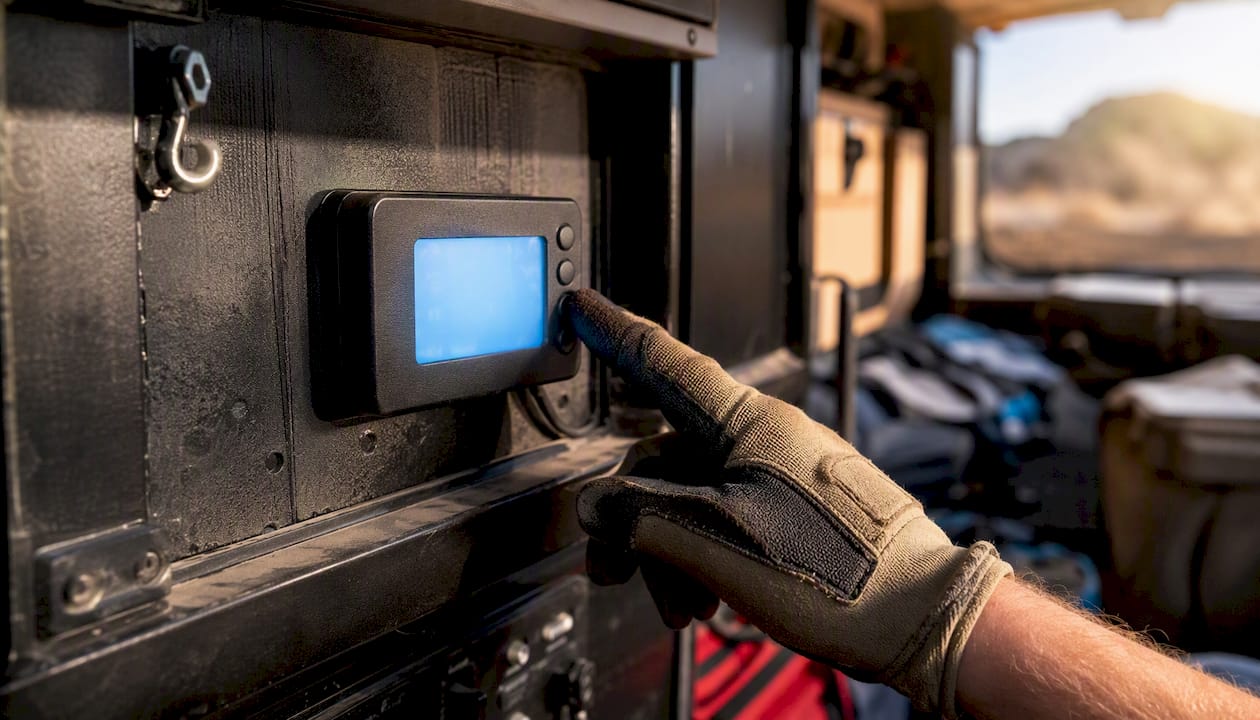

What a Battery Monitor Display Actually Shows You
Open the app or glance at the screen and you’ll see a handful of numbers that, once you know how to read them, turn into real decisions. State of charge percentage is the headline figure. Amps in and out show you exactly what’s drawing power right now, which is how you catch a phantom draw from a forgotten interior light or a parasitic load from an old converter. Amp-hours used tells you your daily consumption pattern.
Time-to-go is the number boondockers watch closest. It’s a live estimate of how long your current draw can continue before you hit your low-battery cutoff.
- Voltage — a rough health check, not a fuel gauge on its own
- Amps in/out — spot phantom draws and confirm solar or shore charging is working
- Ah used / SoC% — size your daily consumption against your bank’s actual capacity
- Time-to-go — the number to watch during a cloudy solar-only day
- Deepest discharge and cycle count — historical markers that reveal wear patterns over months, not minutes
Running the AC off an inverter for an hour looks completely different on these screens than an overnight fridge cycle, and that distinction is exactly what lets you plan a boondocking stretch with any real confidence.

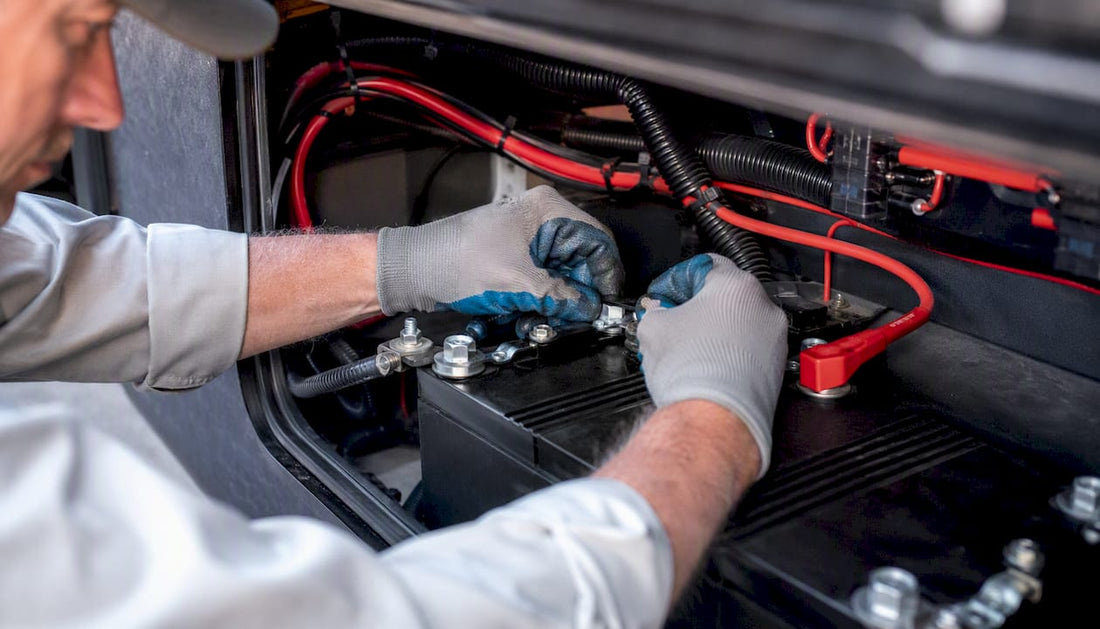

Shunt, Display, Wiring, and App: What Goes Into an Installation
A complete system has four parts: the shunt itself, a display or smart-shunt unit with Bluetooth or Wi-Fi, the wiring connecting them, and the companion app on your phone. Getting accurate readings depends less on which brand you buy and more on whether the installation respects a few non-negotiable rules.
- Mount the shunt on the negative side of the battery bank, never the positive
- Confirm every load and every charger routes through the shunt, none bypassing it directly to the battery terminal
- Use correctly sized cable gauge for your peak current draw
- Fuse the positive line appropriately and mount the shunt somewhere protected from moisture and corrosion
- Set the battery chemistry in the monitor’s settings, LiFePO4 and lead-acid charge and discharge very differently
Installation guides consistently point out that a charger or load wired around the shunt is the number one reason a monitor reports numbers that don’t match reality. Check our wiring guide for diagrams before you start cutting cable.

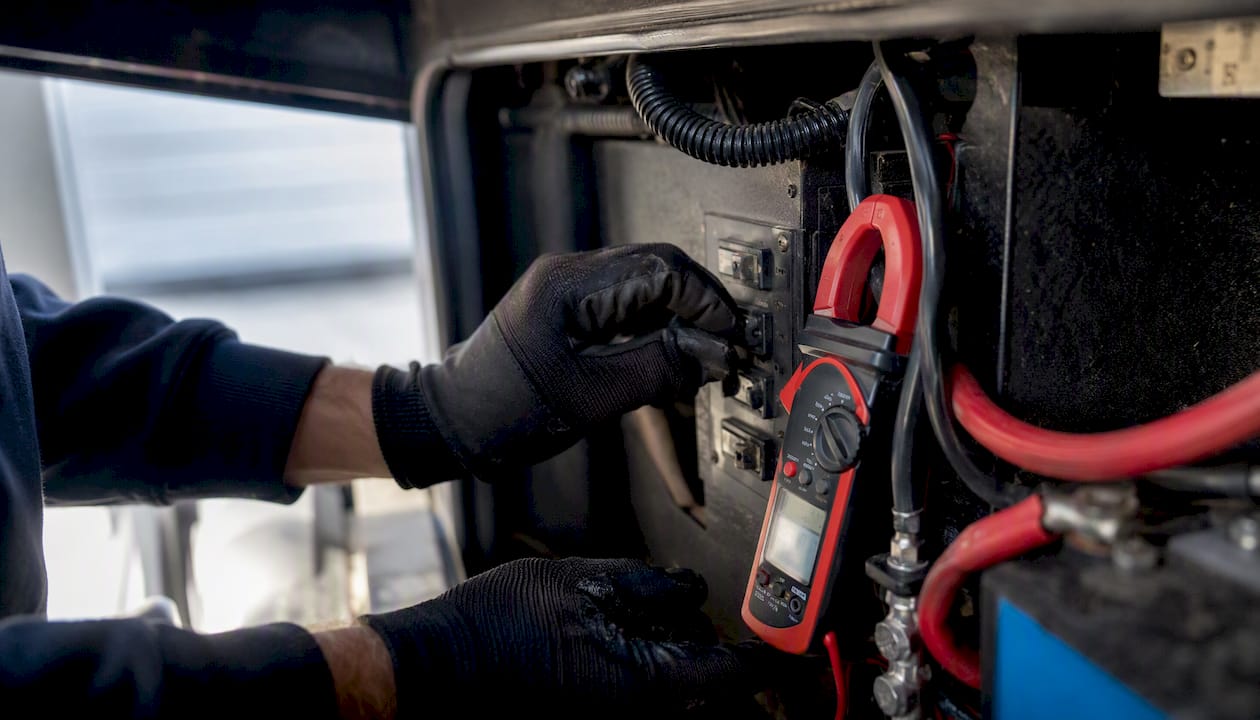

Pro Tip: Before you close up the battery compartment, turn on every 12-volt device in the RV one at a time and watch the amp reading climb. If a device doesn’t register, it’s wired around your shunt.
Choosing the Right Battery Monitor for Your RV
The direct answer: pick a shunt-based monitor rated well above your system’s peak current draw, and make sure it supports your battery chemistry before you buy anything else. An undersized shunt can’t handle a heavy inverter surge, and a monitor that can’t be configured for LiFePO4 will give you charge curves calibrated for the wrong chemistry.
Beyond that baseline, a few features separate a basic display from a genuinely useful tool:
- Shunt amp rating sized comfortably above your inverter’s peak draw, not just your average load
- LiFePO4 compatibility with configurable charge and discharge profiles, not a fixed lead-acid curve
- Bluetooth or app connectivity, the kind of remote access VictronConnect popularized, so you can check status without climbing into a storage bay
- Alarms for low SoC, high discharge current, or low voltage
- Data logging that stores cycle count and deepest discharge over time
Price tiers roughly break into different groups ranging from basic voltmeters that show only voltage, which is of limited use on lithium batteries, to mid-range shunt monitors that add amp-hour tracking. App-enabled units like the BMV-712 Smart provide wireless monitoring and historical trend data. Banshee Batteries carries a collection of compatible monitors built to pair cleanly with LiFePO4 systems, which removes the guesswork of chemistry compatibility entirely.
Keeping Your Monitor Calibrated and Avoiding False Readings
A monitor is an estimator, and estimators drift. Left unchecked for months, small errors from charging inefficiency and self-discharge stack up until the displayed percentage stops matching reality.
- Charge the battery fully until the charger drops to float and the tail current declines to near zero.
- Confirm the monitor reads 100% at that point, or manually sync it if it doesn’t.
- Repeat this full-charge sync every few weeks to few months, and always after installing new batteries.
- If the number seems consistently off, check for loads or chargers wired around the shunt before assuming the device is broken.
- Watch for repeated low-voltage alarms that don’t match your usage. That’s a red flag worth a professional look, not something to ignore.
Wrong capacity settings and incorrect shunt sizing cause the same kind of false confidence. So does ignoring temperature, since cold weather reduces usable capacity in ways a monitor calibrated for warm conditions won’t fully capture.
How Monitoring Data Actually Changes Your Habits
Watching numbers is one thing. Changing behavior because of them is where battery life actually gets extended. Owners who track cycle count and depth of discharge over a season start avoiding the two things that kill batteries fastest: running them down too far, too often.
- Set a personal SoC cutoff, say 30%, and stop running heavy loads once you hit it
- Stagger the microwave, AC, and coffee maker instead of stacking them
- Push solar or generator charging to reach a genuine 100% regularly rather than topping off at 90%
- Schedule your recalibration around that full-charge routine
Pro Tip: If your daily Ah-used number keeps creeping toward your bank’s usable capacity, that’s not a battery problem. That’s a sign your bank is undersized for how you actually camp.
A Practical Note From Donald
The single habit that matters most: verify your shunt wiring, set the correct battery chemistry, and recalibrate at full charge. Skip any one of those and the fanciest app-enabled display just reports confident-looking nonsense. A basic voltmeter costs less, but you’re trading real confidence for a lower price tag, and on a lithium bank, that trade isn’t close.
