How to Test an ATV Battery With a Multimeter

A dead ATV battery rarely gives much warning. One ride, your machine fires instantly. The next, you hit the starter button and get a weak click, a slow crank, or nothing at all. Knowing how to test an ATV battery with a multimeter gives you a fast answer before you lose a riding day, get stranded on the trail, or replace a battery that was never the real problem.

A basic digital multimeter can reveal whether the battery is discharged, worn out, or not receiving enough charge from the ATV. It cannot tell the whole story by voltage alone, especially with lithium batteries, but it is the right first tool for a clear, practical diagnosis.

What You Need Before You Start

You need a digital multimeter, access to the battery terminals, and ideally a battery charger matched to your battery chemistry. Set the meter to DC volts, shown as V with a solid line over a dotted line. If your meter is not auto-ranging, select the 20V DC setting.

Park the ATV on level ground, switch off the ignition, and remove the key. Keep open flames and sparks away from the battery area. AGM batteries are sealed, but damaged batteries can still vent gas. If you have a lithium LiFePO4 battery, use a charger specifically designed for lithium chemistry unless the battery manufacturer states otherwise.

For the most accurate resting-voltage reading, let the ATV sit with the engine off for at least several hours after riding or charging. Testing immediately after charging can show a temporary surface charge that makes the voltage look healthier than it really is.

How to Test an ATV Battery With a Multimeter

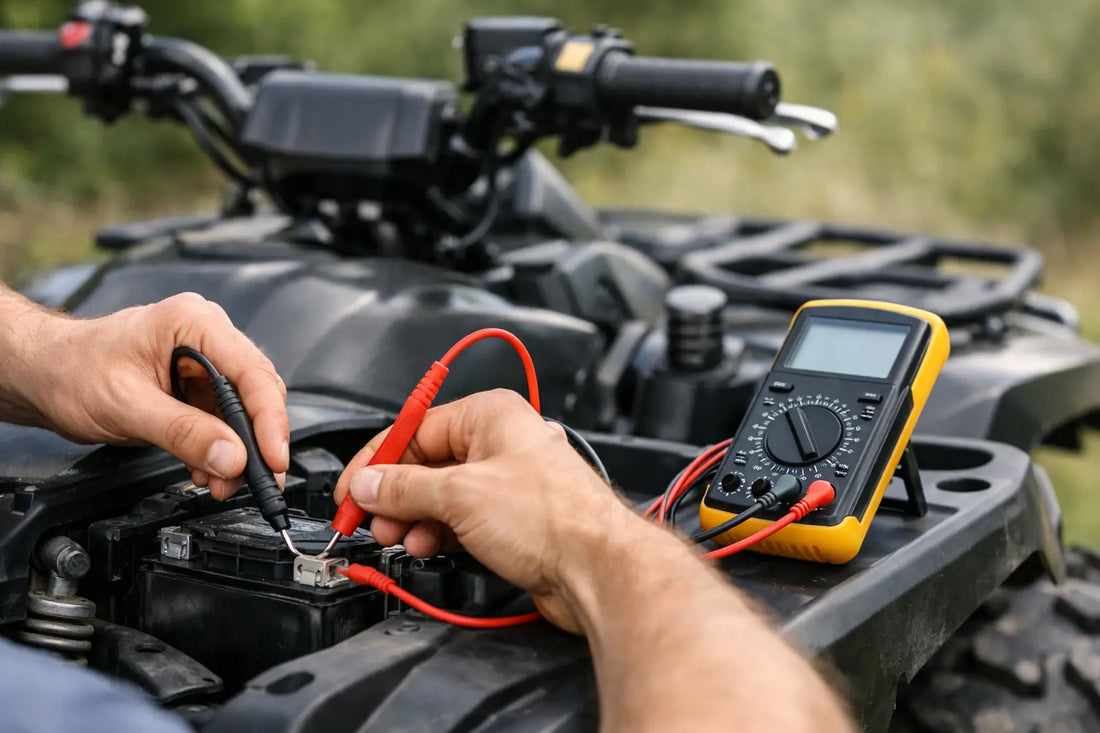

Start with the battery at rest. Touch the red multimeter probe to the positive terminal marked with a plus sign, then touch the black probe to the negative terminal marked with a minus sign. Read the voltage shown on the meter.

Test directly on the lead battery posts, not on the cable ends or mounting hardware. Corroded, loose, or damaged connections can create resistance and cause a no-start condition even when the battery itself tests well.

Reading an AGM ATV Battery Voltage

Most conventional sealed AGM ATV batteries are 12-volt batteries. A fully charged, healthy AGM battery should generally read around 12.7 to 12.9 volts after resting.

A reading around 12.4 to 12.6 volts means the battery has a partial charge and may still start the ATV, depending on engine size, temperature, and how hard the starter has to work. Around 12.2 volts is roughly half charged. Below 12.0 volts, the battery is deeply discharged and needs attention before you rely on it.

A low reading does not automatically mean the battery has failed. Charge it fully, let it rest, and test it again. If it quickly falls back below 12.4 volts without use, the battery may no longer hold a meaningful charge.

Reading a LiFePO4 ATV Battery Voltage

Lithium LiFePO4 batteries behave differently from AGM batteries. A healthy, rested 12-volt LiFePO4 battery commonly reads about 13.2 to 13.4 volts, but voltage does not provide as precise a state-of-charge estimate as it does with lead-acid batteries. Lithium holds a relatively flat voltage curve through much of its usable capacity.

If the reading is unusually low, first make sure the battery's internal battery management system has not entered protection mode. Some lithium batteries may need to be connected to a compatible charger to wake the BMS. Follow the battery's specific instructions rather than forcing a charge or trying to jump-start it with unknown equipment.

Check Voltage While Cranking

Resting voltage is only half the test. A battery can show 12.7 volts with no load, then collapse the moment the starter demands current. This is common with aging batteries that have lost their ability to deliver strong cranking power.

Leave the multimeter probes on the battery terminals where you can see the display safely. Press the starter button and watch the lowest voltage reading during cranking. On a healthy AGM battery, voltage should generally stay above about 9.6 volts while the engine turns over.

If the voltage drops sharply below that level, the starter turns slowly, or the meter falls toward 9 volts or lower, the battery is likely weak. Confirm it is fully charged before replacing it. A severely discharged AGM battery can mimic a failed battery, but a fully charged battery that repeatedly sags under cranking load is not built for another hard season.

Lithium batteries require more care with this test because BMS protection settings and voltage behavior vary by model. A sudden shutdown during cranking can indicate a weak battery, a BMS protection event, a poor connection, or a starter drawing more current than expected. Check the battery specifications before judging lithium battery health by a single cranking-voltage number.

Test Your ATV Charging System Too

A new battery will not stay healthy if the ATV's charging system is weak. With the multimeter still connected to the battery terminals, start the ATV and let it idle. Then raise the engine speed moderately, following normal safety practices and keeping hands clear of moving parts.

Most 12-volt ATVs should show charging voltage roughly in the 13.8 to 14.6-volt range once engine speed comes up. The exact number depends on the machine, regulator, temperature, and battery type, but the voltage should rise above the resting battery reading.

If the meter stays near 12.5 volts or drops while the engine runs, the ATV may not be charging properly. The issue could be the voltage regulator, stator, wiring, fuse, ground connection, or a connector damaged by vibration, water, or heat.

Voltage consistently above the manufacturer's recommended range is also a problem. Overcharging can shorten AGM battery life and may trigger protection in a lithium battery. Do not assume a higher number means a stronger charging system. Stable, correct voltage is what keeps a powersports battery ready for work and adventure.

Rule Out the Problems That Look Like a Bad Battery

Before you replace the battery, inspect the terminals and cables. A loose positive connection, corroded terminal, weak ground strap, or damaged cable can steal enough power to make a good battery look useless. Clean corrosion carefully, tighten connections securely, and check that the battery is held firmly in its tray.

Pay attention to what happens when you press the starter button. A single click can point to a weak battery, but it can also be a starter relay or solenoid issue. No dash lights may indicate a blown fuse or disconnected cable. A battery that tests healthy but cranks slowly may be fighting a failing starter motor or an engine with a mechanical problem.

Cold weather adds another layer. AGM batteries lose available cranking power as temperatures fall, while lithium batteries may not accept a charge below freezing unless they include cold-weather charging protection. The right battery for your ATV depends on your riding conditions, electrical accessories, and the demands you place on the machine.

When It Is Time for a New ATV Battery

Replace the battery when it will not hold a full charge, drops hard under cranking after charging, has visible swelling or case damage, or repeatedly leaves you with a no-start condition despite good cables and normal charging-system voltage. Do not keep nursing a battery that has become unreliable. On an ATV, a weak battery can leave you stuck far from the truck, the barn, or the trailhead.

Choose a replacement that matches the required physical size, terminal layout, voltage, and starting-power needs of your ATV. AGM is a proven choice for rugged, dependable starting performance. LiFePO4 can be an excellent upgrade when reduced weight and long service life matter, provided your ATV charging system and riding conditions suit it. Banshee Battery focuses on application-ready power built to handle the vibration, weather, and hard use that powersports machines see.

A multimeter takes only a few minutes to use, and those few minutes can save a ride. Check your battery before the next trip, not after the starter button goes silent.
