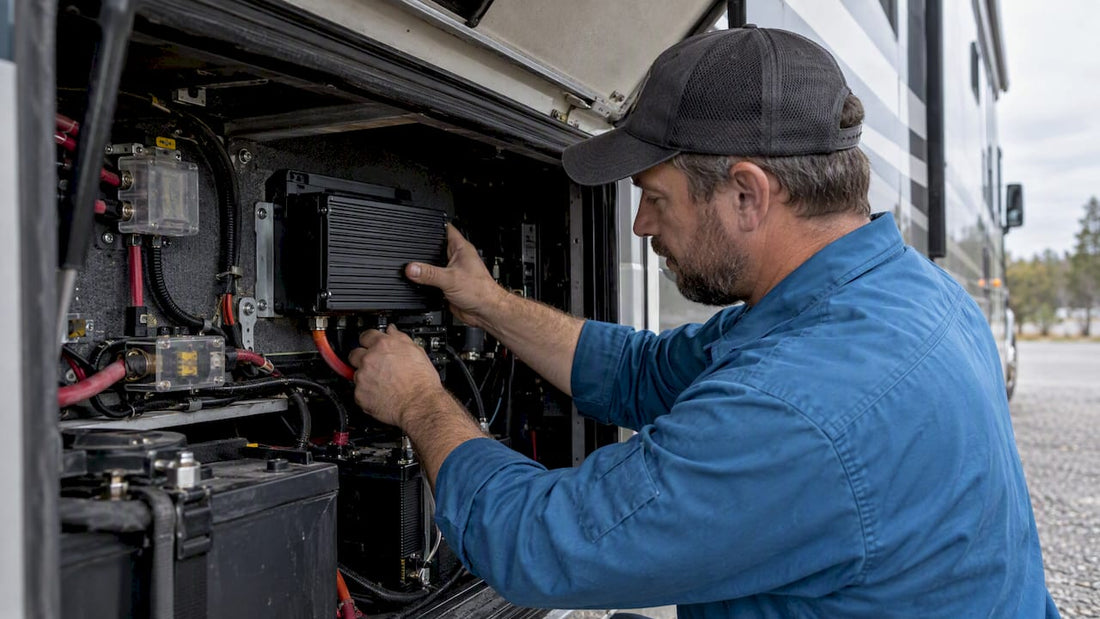

Technician installing DC-DC charger in motorhome

ABYC Safe RV DC to DC Charging: Install and Protect Your Warranty

If you drive to recharge your RV auxiliary bank or run LiFePO4 batteries, a DC-DC charger is usually the right call. Size it to your battery capacity and your alternator’s spare current, not just the biggest unit you can afford. Read the sizing and safety sections below before you buy anything or touch a wrench.

TL;DR:

  • Sizing your DC-DC charger requires matching it to your battery capacity, driving time, and the alternator’s available spare current, typically using a 10-20% rule of thumb.
  • Proper wiring involves selecting the correct gauge based on load and cable length, with fuse placement close to batteries to prevent shorts and electrical fires.
  • Mount the charger in a ventilated, vibration-free location, and always set the correct profile for your battery chemistry to avoid damage or shortened battery life.
  • Confirm the alternator’s spare capacity before choosing a charger rating; an undersized unit results in slower charging, while an oversized one risks overheating wiring or overloading the alternator.
  • Maintain and troubleshoot by checking connections, fuse integrity, and voltage readings; always use manufacturer manuals for specific installation and configuration requirements.
bansheebatteries.com
Choose Reliable RV Battery Power
Banshee Batteries provides AGM and LiFePO4 batteries for demanding automotive, powersports, marine, and outdoor applications.
Explore battery solutions

Table of Contents

What a DC-DC charger actually does for your rig

A DC-DC charger sits between your vehicle’s alternator and your auxiliary battery bank, taking raw, unregulated alternator voltage and converting it into a proper multi-stage charge profile: bulk, absorption, and float. A simple battery isolator just passes voltage through. A DC-DC charger regulates it, which matters more than most people expect once you add lithium batteries or long cable runs to the picture.

You need one, or benefit heavily from one, in these situations:

  • Your auxiliary bank is LiFePO4 and needs a charge profile an alternator alone cannot deliver safely.
  • The cable run between the starting battery and the auxiliary bank is long enough to cause meaningful voltage drop.
  • Your vehicle has a smart or variable-voltage alternator that does not hold a steady charging voltage.
  • You run heavy loads (fridges, inverters, pumps) off the auxiliary bank while driving, and need the charger to keep pace.

A DC-DC charger also plays well with solar. Solar controllers handle charging from panels, and the DC-DC unit handles charging from the engine, often feeding into the same battery bank without conflict. Most setups run both inputs simultaneously, with the battery accepting whichever source has current available. Neither replaces the other. A cloudy day leaves you dependent on driving time, and a short drive leaves you dependent on sun, so having both covers more real-world days than either alone.

How to size a DC-DC charger for your battery and alternator

Sizing comes down to four checks, done in order.

  1. Find your battery bank’s amp-hour rating. This is on the battery label or spec sheet.
  2. Decide your realistic recharge window. If you only drive an hour between camps, size for a meaningful recovery in that hour, not a full recharge of the bank.
  3. Check your alternator’s spare capacity. Subtract what your vehicle’s own electrical loads draw from the alternator’s rated output, and treat the remainder as what is actually available to the charger.
  4. Apply the rule of thumb. Most installers size the charger to draw somewhere around 10 to 20 percent of the alternator’s rated output, then round to a common charger size.

In practice, that math lands most RV and van builds in one of three brackets. A 20-amp charger suits smaller banks, around 100 amp-hours, where driving is a supplement to solar rather than the main charging source. A 40-amp charger fits a 200 to 300 amp-hour bank for someone who drives several hours a day. A 60-amp charger is for larger banks or builds where driving is the primary charging method and the alternator has room to spare.

Do not exceed your alternator’s continuous rating just because a bigger charger is available. Alternators are rated for intermittent peak loads, not for sustained high output for hours at a time, and manufacturers routinely warn against running one near its ceiling continuously. A marine and RV-tuned sizing guide covers the same 10 to 20 percent margin and the wiring mistakes that come from skipping it.

Alternator capacity and charger sizing margin

Pro Tip: If you’re unsure of your alternator’s spare capacity, size down rather than up. An undersized charger just charges slower; an oversized one can overheat wiring or stress the alternator.

Wiring, fuses, mounting and the installation checklist

Wire gauge depends on two things: the charger’s amp rating and the round-trip cable length. Blue Sea’s wire sizing method uses current, round-trip distance and an allowable voltage drop, typically 3% for critical circuits and 10% for non-critical ones, to land on the right AWG. Stranded, tin-plated copper with insulation rated to 105°C holds up better in an engine bay or under-floor run than standard automotive wire.

Fuse placement follows the same logic banks and boats use, and it is not optional. Blue Sea’s DC circuit protection guidance notes that most DC circuit fires start as shorts in the wiring itself, which is why overcurrent protection has to sit close to the power source.

  • Place the fuse or breaker within 7 inches of the battery connection whenever practical.
  • Where the cable runs through conduit or a sealed enclosure, ABYC allows extending that distance to 40 or 72 inches depending on the protection method.
  • Match the fuse rating to the wire gauge and the charger’s input current, never to the battery’s full capacity.

35%: More than a third of boat electrical fires trace back to short circuits in DC wiring, which is why fuse placement close to the source matters as much as the fuse rating itself.

Mounting the charger itself is simpler but easy to get wrong. Give it clear airflow since these units generate real heat under load, keep it away from constant vibration sources like the engine block, and balance proximity to the batteries against cable length, since a shorter run reduces voltage drop but a mount too close to the starting battery can mean poor ventilation.

A practical install sequence:

  1. Plan the cable route and measure the round-trip length before buying wire.
  2. Disconnect both battery banks before any wiring work.
  3. Run and secure the cable, then size and place fuses at both the starting battery and auxiliary battery ends.
  4. Mount the charger in a ventilated, vibration-isolated spot.
  5. Reconnect, power up, and check voltage and current readings against the charger’s expected profile for your chemistry.

The RV battery bank wiring guide walks through diagrams for exactly this kind of run if you want a visual reference before you cut cable.

Setting up charger profiles for LiFePO4, AGM and mixed banks

LiFePO4 and AGM batteries want different charge curves, and getting this wrong either undercharges the battery or trips a lithium BMS into cutting off mid-charge.

  • LiFePO4 generally wants a fast bulk stage, a tightly controlled absorption voltage with a current limit, and little to no float, since overcharging lithium at rest degrades the cells.
  • AGM wants the traditional bulk, absorption, and float sequence, typically with temperature compensation built in.
  • A charger with a dedicated lithium mode talks to the pack correctly; running a lithium bank on an AGM profile risks the BMS cutting the circuit when voltage limits are exceeded.

Mixing chemistries on a single charger output is a common mistake in builds with a lithium house bank and an AGM starting battery. One output cannot serve two different charge curves correctly at the same time, so installers either run separate charger outputs, one per chemistry, or choose a charger with independently configurable channels. The AGM charging breakdown covers AGM-specific setpoints in more detail if that is your chemistry.

Pro Tip: Always set the charger’s profile to match the battery manufacturer’s own spec sheet, not a generic default. The default is a guess; the spec sheet is the actual number.

Grounding and overcurrent protection: what ABYC guidance covers

Beyond fusing placement, grounding is the part installers skip most often, and it is the one with the most direct safety consequence.

  • Follow ABYC A-20 and A-25 guidance when installing chargers or inverters, which covers how to size the DC grounding conductor and keep it separate from AC safety grounding.
  • DC grounding conductors can need to be larger than you’d expect from AC wiring habits, specifically to handle potential DC fault currents rather than normal operating current.
  • Size the fuse or breaker’s interrupt rating (AIC) to the battery bank’s potential fault current, not just its continuous amp rating, since a lithium or AGM bank with high cold-cranking amps can deliver far more fault current than a small fuse is rated to safely interrupt.
  • Use marine-grade or ignition-protected components anywhere the charger sits near an engine bay, and route cable away from exhaust and moving parts regardless of wire type.

More than half: Over half of boat fires are electrical in origin, and most trace to DC circuit shorts, which is exactly the failure mode correct fusing and grounding are designed to prevent.

A partner resource worth reading before you finalize grounding is this breakdown of inverter and charger install rules on bonding and corrosion, which covers the same grounding logic applied specifically to charger and inverter installs.

Troubleshooting and maintenance for DC-DC chargers

Most DC-DC charger problems show up as one of a handful of symptoms.

  • No charge at all: check for a tripped fuse first, then confirm the charger is receiving ignition or alternator-sense signal to activate.
  • Charger runs hot or shuts down under load: usually a ventilation problem or an undersized wire run causing excess voltage drop.
  • Fuse or breaker trips repeatedly: points to a wiring short or a fuse rated too close to the charger’s actual draw.
  • Voltage reads oddly low or high: check the profile setting against your battery chemistry before assuming the charger itself is faulty.

A quick diagnostic: with the engine running, you should see alternator-side voltage in the normal 13.5 to 14.5 volt range at the charger’s input, and output voltage matching whatever stage the charger profile is in. A reading far outside that range points to either a wiring fault or a profile mismatch rather than a dead unit.

Routine maintenance is light: check connections for corrosion a few times a year, confirm the mounting is still vibration-secure, and reconfirm the charger profile any time you replace the battery with a different chemistry. If you’ve checked wiring, fuses, and profile settings and the charger still misbehaves, that’s the point to call the manufacturer or a qualified installer rather than keep guessing.

Technician checking RV charger connections

Publisher notes on compatibility, warranties and where to check first

Banshee Batteries builds AGM and Lithium (LiFePO4) batteries for powersports, marine, auto, and RV use, alongside a chargers and accessories line, and backs them with a 4-year warranty on AGM batteries and a 5-year warranty on lithium marine batteries. That warranty length is worth weighing against charger compatibility before you buy, since a mismatched profile can shorten a battery’s working life well before the warranty period ends.

Before pairing a charger with a battery:

  • Confirm the charger has a profile matching your battery chemistry, not just a generic “lithium compatible” label.
  • Check voltage setpoints against the battery’s own spec sheet rather than the charger’s factory default.
  • Use a vehicle-specific battery finder tool when you’re unsure which battery fits your rig, rather than guessing from capacity alone.

Manufacturer installation manuals remain the final word on torque specs, cable type, and model-specific configuration steps for any charger you buy, and should be your last check before commissioning. If a compatibility question goes beyond what’s documented, Banshee Batteries’ support team can walk through it with you directly.

What actually matters once you start wrenching

Correct fusing and clean cable routing matter more than charger brand or amp rating. A $200 charger wired with the wrong fuse placement is more dangerous than a cheaper one installed correctly. Don’t chase a bigger amp rating without first confirming your alternator can actually sustain it; that number is a ceiling, not a target. When you’re unsure which battery or charger fits your rig, use a vehicle-finder tool or ask support before you buy, not after something smokes.

— Donald

Get your charger and battery pairing right the first time

Banshee Batteries carries AGM and Lithium (LiFePO4) batteries and offers warranties on their products.

Bansheebatteries

Check the chargers and accessories collection for a unit that matches your amp sizing, and browse the lithium battery lineup if you’re building a LiFePO4 bank. If you’re not sure which battery fits your rig, reach out to support or start at Bansheebatteries before you order.

FAQ

How do I install a DC-DC charger in an RV?

Plan the cable route and measure its round-trip length, disconnect both batteries, run and fuse the cable close to each battery, mount the charger in a ventilated spot, then reconnect and verify voltage readings match your battery’s charge profile. Manufacturer installation manuals cover model-specific torque and cable requirements for the final steps.

Do I still need a solar controller with a DC/DC charger?

Yes, they serve different inputs and work together rather than replacing each other. The solar controller manages charging from panels, while the DC-DC charger manages charging from the alternator, and most RV setups run both into the same battery bank.

How many amps should my DC-DC charger be?

Size the charger to around 10 to 20 percent of your alternator’s spare capacity after accounting for the vehicle’s own electrical loads, which typically lands at 20 amps for smaller banks, 40 amps for mid-size banks, and 60 amps for larger banks or heavy-use setups. Never size based on the charger’s maximum rating alone; alternator spare capacity is the limiting factor.

Will a DC-DC charger drain my starter battery?

A properly installed DC-DC charger draws only from alternator output while the engine runs and should not draw down the starting battery during normal driving. Correct fusing and an alternator-sensing or ignition-sensing activation setup, confirmed in the charger’s manual, are what keep that isolation reliable.
