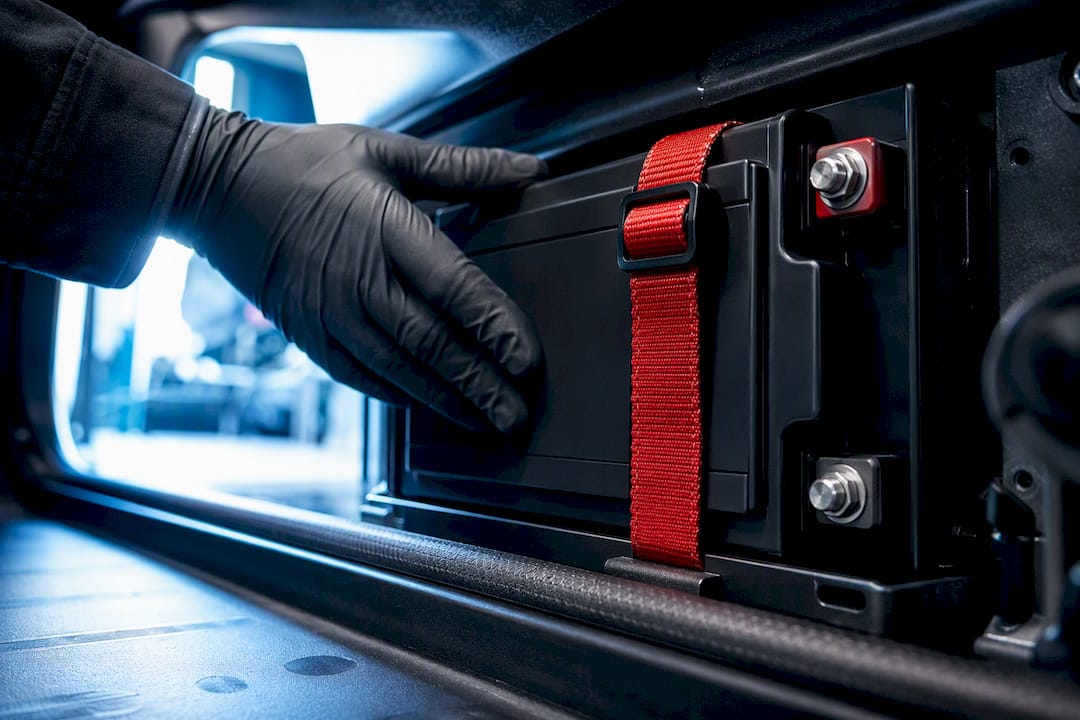

AGM battery secured in sideways orientation

7 Steps to Mount an AGM Battery Sideways Without Voiding Warranty

In most cases you can mount an AGM battery sideways, but only when the model manual permits it and you observe the manufacturer’s support and ventilation requirements. This is not a universal green light: some models restrict horizontal mounting entirely, and nearly all of them forbid resting the battery on its shortest end or on the case seam. Ventilation matters regardless of orientation.

TL;DR:

  • Many AGM batteries can be mounted on their side if the manufacturer explicitly permits it and the battery is fully supported along its long side.
  • Ventilation is essential regardless of orientation because overcharging can produce hydrogen gas that needs to vent safely, even for sealed AGM models.
  • Mounting on the shortest end or on the case seam is typically forbidden due to structural stresses and potential damage to internal components.
  • Battery warranty and safety depend heavily on following the specific manufacturer’s manual for orientation, torque, spacing, and ventilation requirements.
  • Choosing a battery designed for flexible mounting, such as those built for powersports or marine use, offers better reliability for sideways or unconventional installations.
bansheebatteries.com
Choose Power for Flexible Mounting
Banshee Batteries designs durable AGM batteries for powersports and marine applications, with expert guidance to help you choose a suitable solution.
Explore battery solutions

Table of Contents

Why AGM Batteries Tolerate Non-Upright Mounting

Absorbed glass mat batteries, a category of valve-regulated lead-acid (VRLA) design, hold their electrolyte inside fiberglass mats sandwiched between the plates instead of leaving it as free liquid. That immobilized electrolyte is the entire reason AGM batteries have a reputation for tolerating angles that would spill a flooded lead-acid battery in seconds.

The mats work alongside a recombination process: oxygen produced at the positive plate during charging migrates to the negative plate and recombines with hydrogen instead of escaping as gas. According to the AGM battery manual from Fischer Panda, VRLA batteries recombine most of the gas generated under normal charging conditions. That is why an AGM battery can sit on its side without weeping acid the way a wet-cell battery would.

Recombination is not perfect, though, and it is not a permanent safety net. The same manual notes that overcharging can still push hydrogen production past what the recombination process can handle, and that gas has to go somewhere. This is the detail that trips people up: they read “sealed” or “maintenance-free” on the case and assume orientation stops mattering entirely. It does not. Immobilized electrolyte lowers the odds of a leak, but it does not eliminate the venting mechanism built into every VRLA cell, and it does not change the physical stresses that come from mounting a heavy case on its side.

Sideways mounting works because the mat holds the electrolyte in place under gravity from multiple angles, not because the battery has been redesigned to ignore orientation altogether. That distinction shapes every caution in the sections that follow.

Manufacturer Cautions and Orientation Limits You Must Check

Every AGM manual worth reading draws a line between “can be mounted on its side” and “can be mounted any way you like.” According to Rolls Battery’s technical support guidance, many manufacturers permit horizontal mounting on the long side but explicitly forbid two things: mounting on the end, meaning the shortest side, and letting the battery rest on the case or cover seam.

AGM battery mounting orientation comparison

The reasoning is mechanical, not chemical. The seam is where the case halves are joined, and it is not built to bear the battery’s full weight over time, especially with vibration from a vehicle, boat, or off-road machine. Mounting on the short end concentrates stress on a smaller footprint and can shift internal plate alignment in designs that were never tested in that position.

Rolls Battery’s guidance also points out that some manufacturers produce special-order models or racking systems built specifically for horizontal or unconventional installs. That is the exception, not the default. A standard AGM battery pulled off a shelf is typically validated for upright mounting and, in many cases, for mounting flat on its long side, but not for every angle a customer might imagine.

The Surrette/ChargeSolar manual reinforces this with specifics: recommended torque ranges for terminal connections, minimum spacing between batteries, and operating temperature windows that assume correct orientation. Warranty terms are tied to these specifications. A battery mounted in a way the manual does not describe is a battery whose warranty coverage is now a judgment call, not a guarantee. Always check the documentation for the exact model before you commit to a mounting angle.

Ventilation, Hydrogen Venting, and Heat Exposure

Hydrogen gas is the safety concern that drives most of the mounting rules in AGM manuals, and it is worth understanding why. During normal charging, the recombination process handles most of the gas produced inside the cell. The Fischer Panda AGM manual puts that recombination rate at up to 99% under normal conditions, which sounds close enough to complete to ignore. It is not. Overcharging pushes gas production past what the valves and recombination chemistry can absorb, and the excess vents as hydrogen, a gas that is flammable in concentrations most people would not expect in a small enclosed space.

That is why the manual is explicit that AGM batteries should never be installed or charged inside an airtight or gas-tight enclosure. A battery box with no airflow, a sealed underseat compartment, or a shrink-wrapped housing all create the exact conditions the recombination design is meant to avoid triggering. Ventilation does not need to be dramatic. It needs to exist. A vent path, a gap in the enclosure, or a purpose-built battery box with venting is usually enough to keep hydrogen from accumulating.

Heat exposure factors into the same set of decisions. Mounting a battery close to an exhaust manifold, engine block, or other heat source raises internal temperature, which accelerates the chemical reactions that produce gas in the first place. The Surrette manual specifies allowed operating temperature ranges for exactly this reason. When you are deciding where a sideways-mounted battery goes in an engine bay, boat hull, or storage compartment, clearance from heat sources belongs in the same checklist as clearance from moving parts.

Ventilation, Hydrogen Venting, and Heat Exposure — overview diagram

How to Mount an AGM Battery Sideways, Step by Step

Once the manual confirms your model allows horizontal mounting, the installation itself comes down to a handful of physical rules that protect both the battery and the person relying on it.

  1. Support the battery fully along its long side. A flat, rigid surface under the entire case prevents the kind of point-loading that stresses the shell or the internal plate stack.
  2. Never let the case rest on the seam where the top and bottom halves join, and never mount it on the shortest end unless the manual names that orientation specifically.
  3. Secure the battery with straps or brackets that clamp the case itself, not the valves or terminals. Pressure on a valve can compromise the seal that regulates gas release.
  4. Use the terminal hardware specified for your model and torque it to the range in the manual. The Surrette manual publishes torque ranges precisely because over-tightened or loose terminals are a common failure point.
  5. Connect the negative terminal last when wiring the battery in, and insulate any exposed terminal to avoid accidental shorts against metal mounting hardware.
  6. Leave clearance between the battery and any heat source, and keep it within the operating temperature range the manual specifies.
  7. Charge with a profile built for AGM chemistry. A charger designed for flooded lead-acid batteries can overcharge an AGM cell and push it past the point where recombination keeps up, which is exactly the scenario that produces hydrogen venting.

Pro Tip: Before you tighten the final strap, do a dry run: set the battery in place unsecured and confirm nothing touches the valves, the seam sits clear of any bracket, and the terminals have room for the cable ends without strain.

Skipping any one of these steps does not necessarily cause an immediate problem. It shows up later, as a swollen case, a corroded terminal, or a battery that dies well before its rated lifespan because it was quietly working against its own design the whole time.

What Sideways Mounting Can Affect Long Term

Orientation is not just a safety question, it is a performance and longevity one. A battery that is under-supported or resting on its seam takes on mechanical stress every time the vehicle hits a bump or the boat takes a wave. Over months, that stress can loosen internal connections or distort the case enough to affect the seal around the valves, which shortens usable life even if nothing fails outright on day one.

Temperature compounds the effect. A battery mounted sideways in a spot with poor airflow and no ventilation runs warmer, and heat is the single biggest accelerant of capacity loss in any lead-acid chemistry.

Warranty coverage tracks these same conditions closely. Manufacturers write orientation and mounting rules into their manuals precisely so they can point to them later, and an installation that violates those instructions gives a warranty claim reviewer an easy reason to deny it. Rolls Battery’s guidance is direct on this point: model-specific mounting allowances exist, and following the manual is the only reliable way to keep both safety and warranty coverage intact.

A simple habit protects you here: photograph the finished installation, note the battery’s model and serial number, and keep a copy of the manual with your other vehicle or vessel paperwork. If a warranty question ever comes up, that record shows the mounting matched what the manufacturer specified.

Choosing a Battery Built for Flexible Mounting

Not every AGM battery on the market is rated the same way for horizontal installation, which is why the manual check matters more than any general rule of thumb. Banshee Batteries has spent over 20 years designing AGM and lithium (LiFePO4) batteries specifically for powersports and marine use, where cramped compartments and unconventional mounting angles are routine rather than rare.

Some AGM battery lines use a high lead content construction aimed at withstanding vibration and extreme conditions, and some companies back these AGM batteries with a 4-year warranty. For installations where mounting flexibility matters even more, a lithium (LiFePO4) battery built with an integrated Battery Management System offers another route, and some lithium marine batteries come with extended warranty coverage.

When a mounting location leaves you choosing between fighting a tight AGM orientation limit and switching chemistry entirely, checking whether a specific model is rated for the angle you need, whether AGM or lithium, is the more reliable path than assuming any sealed battery tolerates any position.

The One Rule That Actually Matters

If there is a single takeaway worth carrying into a garage or a boat slip, it is this: the manual outranks intuition every time. “Sealed” and “maintenance-free” describe the electrolyte, not a blanket permission to mount the battery however the space demands.

When you are not sure, support the battery on its long side and make sure air can move around it. After the install, run three quick checks: confirm the mounting is fully secure with no shift when pushed, confirm nothing is pressing on a valve or terminal, and confirm there is a ventilation path rather than a sealed pocket. Those three checks catch most of the mistakes that turn a reasonable sideways install into a warranty problem or a safety risk.

— Donald

Need a Battery Rated for Sideways or Rugged Mounting?

If your compartment demands a sideways install, the simplest fix is starting with a battery built for it rather than hoping a standard case tolerates the angle. Banshee Batteries designs its AGM powersport batteries for the tight, vibration-heavy compartments typical of off-road and powersport machines, backed by a 4-year warranty. For marine installs where weight and mounting flexibility both matter, the Lithium (LiFePO4) marine batteries come with a 5-year warranty and a built-in Battery Management System.

Bansheebatteries

  • AGM powersport batteries built with high lead content for rugged, vibration-prone mounting locations.
  • Lithium (LiFePO4) marine batteries with an integrated Battery Management System for weight-sensitive or flexible installs.
  • Chargers and accessories matched to the correct AGM or lithium charging profile.

Always confirm a specific model’s orientation rating before installation. Browse the full range of AGM and lithium batteries to find one rated for your mounting plan.

Manuals and Standards to Consult Before You Mount

  • AGM battery manual (Fischer Panda) for recombination and charging guidance.
  • Rolls Battery orientation support article for mounting position rules.
  • Surrette/ChargeSolar user manual for torque, spacing, and temperature specs.
  • SAE J537 standard documentation for charging and vibration test procedures.
  • Always confirm your exact model’s manual before finalizing mounting orientation.

Sources

FAQ

Can an AGM battery be mounted sideways?

Many AGM models can be mounted on their side, but only when the manufacturer’s manual confirms it for that specific model. When mounted horizontally, the battery should be supported fully on its long side, not resting on the case seam or the shortest end, according to Rolls Battery’s guidance.

Can AGM batteries be installed on their side without leaking?

The absorbed glass mat design immobilizes electrolyte, which is why AGM batteries generally do not leak when installed on their side, unlike flooded lead-acid batteries. That said, the Fischer Panda manual still requires ventilation because overcharging can produce hydrogen gas regardless of orientation.

Can an AGM battery be mounted upside down?

Standard AGM models are generally not designed for upside-down mounting, and manufacturer manuals commonly prohibit it unless the model is specifically built or special-ordered for that orientation. Mounting upside down can interfere with the valve system that regulates gas release, so this orientation should only be used when the manual explicitly permits it.

Can you mount a car battery sideways?

Whether a car battery can be mounted sideways depends on its chemistry and model. A flooded lead-acid battery risks acid leakage if tilted, while an AGM battery may tolerate sideways mounting if its manual allows it and it is supported on the long side away from the case seam, per Rolls Battery’s technical guidance.
