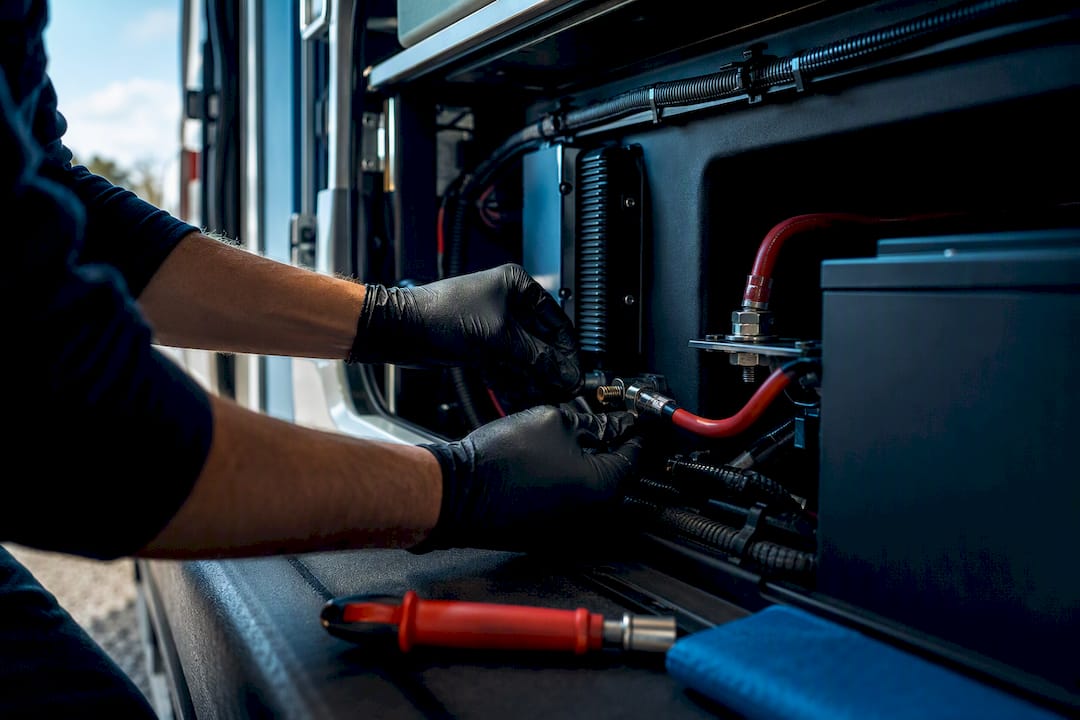

Technician securing RV DC-DC charging connection

DC DC Charger First: Safe LiFePO4 Charging for RVs, Vans, Boats

Yes, an alternator can charge a LiFePO4 battery, but the safe default for most RV, van, and marine setups is a DC-DC charger. A properly regulated alternator with battery management system allow-to-charge wiring can work too, though it demands more engineering. Direct connection without either safeguard usually ends in undercharging from smart alternators or dangerous overload.

TL;DR:

  • Most RV, van, and marine setups should use a DC-DC charger to safely and efficiently charge LiFePO4 batteries instead of relying solely on the alternator.
  • Direct connection to the alternator risks overcurrent damage on old fixed-voltage units and undercharging from smart or variable-voltage alternators due to ECU voltage cuts.
  • Properly sized DC-DC chargers limit current, match the LiFePO4 charging profile, and prevent overload, with continuous operation capacity being more important than maximum rating.
  • High-output alternators with external programmable regulators and BMS that accept allow-to-charge signals can sometimes be wired directly, but only with experienced installation and protective modules.
  • Correct wiring, fusing, and temperature limits are essential for safety, and charger settings must strictly follow lithium-specific voltage and current recommendations while avoiding float charging.
bansheebatteries.com
Choose Reliable LiFePO4 Power
Banshee Batteries designs durable AGM and LiFePO4 batteries for marine, powersports, auto, and demanding outdoor applications.
Explore Banshee Batteries

Table of Contents

How alternators behave with LiFePO4 batteries

Modern vehicles increasingly use smart or variable-voltage alternators that lower output once the starter battery reads full, a strategy built to save fuel and reduce wear. This behavior works fine for a lead-acid starter battery but leaves a lithium house bank chronically undercharged, since installers commonly report the ECU cuts voltage before the lithium bank reaches a useful state of charge.

The opposite problem shows up with older, fixed-voltage alternators. LiFePO4 cells have very low internal resistance, so when directly wired to an alternator they pull enormous current the moment voltage rises, sometimes far beyond what the alternator was built to sustain. Alternators are engineered for short, intermittent peaks, not the continuous heavy draw a hungry lithium bank demands, which is why direct hookups often overheat the unit rather than simply charging the battery faster.

Why a DC-DC charger is usually the right call

A DC-DC charger sits between the alternator and the lithium bank and solves both problems at once, representing the kind of breakthrough AGM battery innovation that is reshaping the energy storage industry. It limits how much current the battery can pull, applies the correct multi-stage LiFePO4 charge profile instead of a lead-acid curve, and decouples the house bank from whatever voltage the vehicle’s ECU decides to send. That combination protects the alternator from sustained overload while giving the battery a charge it can actually use.

Sizing matters more than buying the biggest unit available. A charger that runs continuously without pushing the alternator near its thermal limit beats an oversized one that draws hard for a few minutes and forces the alternator to work at the edge of its rating.

  • Estimate your alternator’s spare capacity after accounting for starter battery maintenance and other vehicle loads.
  • Choose a charger rated for continuous operation within that spare capacity, not its peak rating.
  • Wire the charger’s ignition-sense lead so it only activates the engine running, preventing any drain on the starter battery at rest.

Our LiFePO4 charger compatibility guide walks through matching charger output to specific battery specifications if you want to go deeper on configuration.

When direct alternator charging can work

Direct charging becomes viable when a high-output alternator is paired with an external programmable regulator, such as a Wakespeed WS500, configured for LiFePO4 voltage targets. But the regulator must accept an allow-to-charge or shutdown signal from the battery’s BMS, because community documentation on high-output alternator setups makes clear that without this link, the alternator keeps pushing current even after the BMS contactor opens, producing a load-dump spike that can damage both the alternator and the battery.

This path also typically needs an alternator protection module to absorb voltage transients during a disconnect event. It suits owners running high-output alternators with a regulator and BMS deliberately engineered to work together, generally installed by someone experienced with marine or heavy-duty electrical systems rather than a weekend retrofit.

Wiring, fusing, and cable sizing best practices

Electrical damage from lithium retrofits is almost always a wiring problem, not a battery problem. Fuse both positive runs close to the batteries themselves, using ANL or Class T fuses sized to the maximum continuous current the circuit will see, never to the wire’s absolute maximum rating.

  • Fuse each positive lead within inches of the battery terminal it protects.
  • Use pure-copper battery cable sized for the charger’s rated output and the actual run length, since undersized cable is a common install mistake that causes voltage drop and heat.
  • Crimp terminals with a proper hydraulic or ratcheting crimper, then heat-shrink every joint.
  • Run a dedicated ignition-sense wire from a switched source, not from a random accessory circuit.
  • Verify chassis grounding at both the engine block and the battery negative bus, since a poor ground can mimic charger failure.

Charging settings: voltages, current, and temperature limits

Most 12V LiFePO4 packs charge in bulk and absorption between roughly 14.0 and 14.6 volts, and charging guides for these chemistries are explicit that float voltage, as used for lead-acid, has no place here: holding a lithium bank indefinitely at absorption voltage accelerates degradation rather than protecting it.

On current, a rate of roughly 0.2C to 0.5C is a reasonable working range for most house-bank setups, but the alternator side needs its own limit. Community experience with high-output alternator installs suggests keeping sustained draw near 50 to 60 percent of the alternator’s rated output, which leaves thermal headroom for continuous operation instead of running the unit at its edge. LiFePO4 chemistry also does not like charging below freezing, so a charger or BMS with a low-temperature cutoff, or a battery with internal heating, matters for anyone running in cold climates.

LiFePO4 voltage current and temperature limits

Safety and BMS interactions you need to plan for

The BMS inside a LiFePO4 battery is a last-resort protection layer, not a charge controller. A well-designed system should rarely, if ever, need the BMS to intervene, because practitioners who work with large lithium banks warn that treating BMS trips as normal operation invites exactly the load-dump scenario that damages alternators.

The fix is coordinated shutdown: wire the BMS allow-to-charge or alarm relay so it commands the alternator or regulator to stop producing current before the internal contactor opens. That sequencing prevents the sudden voltage spike that occurs when a charging source with nowhere for its current to go gets cut off abruptly.

Basic workshop precautions still apply on any high-current job: disconnect the positive terminal before touching wiring, use insulated tools, remove rings and watches, and have a qualified installer review the system before it goes into regular use.

Gloved technician disconnecting battery terminal safely

Pro Tip: Test your allow-to-charge wiring with the engine idling before you ever rely on it underway, so a wiring mistake shows up in the driveway, not on the water or the highway.

Practical install checklist for your first drive

  1. Before starting the engine, confirm every fuse is installed at the correct rating and located close to the battery terminals.
  2. Check that cable sizing matches the charger’s continuous rating and that ignition-sense and BMS allow-to-charge wiring are connected correctly.
  3. Verify the charger or regulator is programmed with LiFePO4 voltage and current settings, not a lead-acid profile.
  4. While driving, monitor alternator temperature and the actual measured charging current rather than trusting the rated spec.
  5. Confirm the starter battery stays isolated from the house bank at all times except through the charger itself.
  6. After the drive, feel for hot terminals or connectors, which signal a wiring problem even if charging seemed to work.
  7. Check the battery’s state of charge and any BMS event logs, then confirm voltages settle to a stable resting level.

Balancing cost, simplicity, and reliability

Fit a DC-DC charger unless your alternator, regulator, and BMS were specifically engineered together for direct charging. A smaller charger you can run continuously beats an oversized one that strains the alternator. Call a professional for high-output or dual-alternator systems, or heavy daily charging needs.

— Donald

Banshee Batteries: compatible LiFePO4 batteries and accessories

Some manufacturers build Lithium (LiFePO4) batteries for powersports, marine, and recreational vehicle use, often including a built-in battery management system designed to work alongside DC-DC charging setups like those recommended in this article. If you are shopping for a bank to pair with a new charging system, our lithium powersports batteries and marine LiFePO4 collection list the specifications you will need to program into any charger or regulator.

Bansheebatteries

Whatever battery you choose, match your charger and regulator voltage settings to the manufacturer’s recommended specs rather than a generic lithium profile. Our chargers and accessories page carries hardware sized for these installs, and our team can help you confirm the right combination for your vehicle before you order. Visit Banshee Batteries to browse the full lineup or reach out with questions about your specific setup.

Sources

This article draws on installer guides covering DC-DC charger wiring, Victron community threads on regulator and BMS integration, and marine-focused design references from CruisersWiki.

FAQ

Can I use my car alternator to charge a lithium battery?

You can, but a direct connection often undercharges the battery on smart alternators or overloads the alternator on older fixed-voltage units. A DC-DC charger between the alternator and the battery is the safer route for nearly every setup.

Will a lithium battery ruin an alternator?

A lithium battery wired directly to an alternator can draw sustained high current because of its low internal resistance, which can overheat an alternator built for short peaks rather than continuous heavy loads. Using a DC-DC charger or a properly integrated external regulator limits that draw and protects the alternator.

Do Noco chargers work with LiFePO4?

Many multi-stage smart chargers, including several Noco models, offer a dedicated lithium setting, but you should always confirm the specific model supports LiFePO4 voltage and current profiles before relying on it for your battery bank. Check the charger’s documentation against your battery’s recommended charge voltages before connecting it.

What is the best way to charge a LiFePO4 battery?

The most reliable method for a vehicle-based setup is a DC-DC charger, which applies the correct multi-stage lithium profile while protecting the alternator from overload. For stationary charging, a shore-power or solar charger programmed with the same LiFePO4 voltage settings works equally well.
